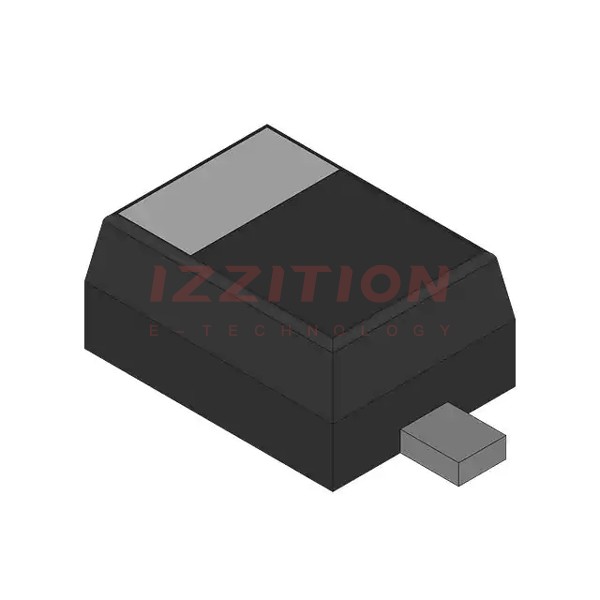

Fairchild Semiconductor-MMSZ5247B - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	MMSZ5247B	MMSZ5248B	MMSZ5249B	MMSZ5244B	MMSZ5245B
Manufacturer	Fairchild Semiconductor	Diotec Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	17 V	18 V	19 V	14 V	15 V
Tolerance	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	0.5 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	19 Ohms	21 Ohms	23 Ohms	15 Ohms	13 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 13 V	100 nA @ 14 V	100 nA @ 14 V	100 nA @ 10 V	100 nA @ 11 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	150°C (TJ)	-50°C ~ 150°C (TJ)	-55°C ~ 150°C	-55°C ~ 150°C	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-123	SOD-123F	SOD-123	SOD-123	SOD-123F
Supplier Device Package	SOD-123	SOD-123F	SOD-123	SOD-123	SOD-123F

Fairchild Semiconductor MMSZ5247B
