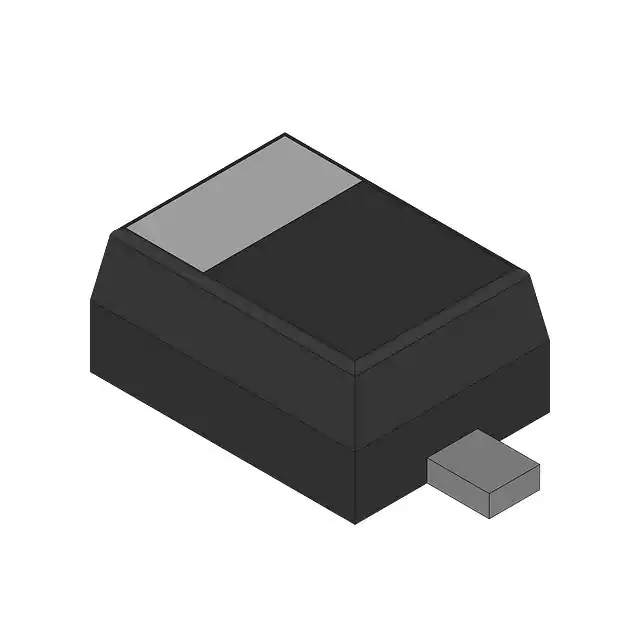

Fairchild Semiconductor-MMSZ5244B - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	MMSZ5244B	MMSZ5247B	MMSZ5245B	MMSZ5241B	MMSZ5242B	MMSZ5243B
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	SMC Diode Solutions	Fairchild Semiconductor
Product Status	Active	Active	Active	Obsolete	Active	Active
Voltage - Zener (Nom) (Vz)	14 V	17 V	15 V	11 V	12 V	13 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	15 Ohms	19 Ohms	13 Ohms	22 Ohms	30 Ohms	13 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 10 V	100 nA @ 13 V	100 nA @ 11 V	2 µA @ 8.4 V	1 µA @ 9 V	500 nA @ 9.9 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-55°C ~ 150°C	150°C (TJ)	-	-55°C ~ 150°C	-55°C ~ 150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-123	SOD-123	SOD-123F	SOD-123	SOD-123	SOD-123
Supplier Device Package	SOD-123	SOD-123	SOD-123F	SOD-123	SOD-123	SOD-123

Fairchild Semiconductor MMSZ5244B
