Fairchild Semiconductor-MMSZ5243B - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	MMSZ5243B	MMSZ5244B	MMSZ5245B	MMSZ5243BS	MMSZ5241B	MMSZ5242B
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Rectron USA	onsemi	SMC Diode Solutions
Product Status	Active	Active	Active	Active	Obsolete	Active
Voltage - Zener (Nom) (Vz)	13 V	14 V	15 V	13 V	11 V	12 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	13 Ohms	15 Ohms	13 Ohms	30 Ohms	22 Ohms	30 Ohms
Current - Reverse Leakage @ Vr	500 nA @ 9.9 V	100 nA @ 10 V	100 nA @ 11 V	-	2 µA @ 8.4 V	1 µA @ 9 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	-	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	150°C (TJ)	-55°C ~ 150°C	-	-	-55°C ~ 150°C	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-123	SOD-123	SOD-123F	SC-76, SOD-323	SOD-123	SOD-123
Supplier Device Package	SOD-123	SOD-123	SOD-123F	SOD-323	SOD-123	SOD-123

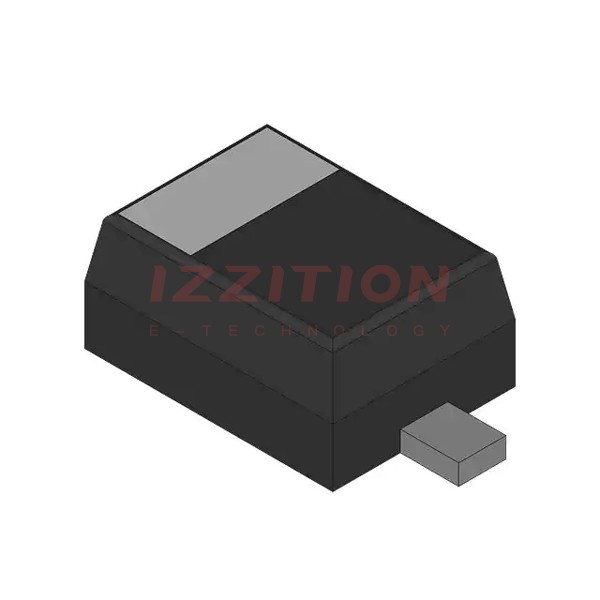

Fairchild Semiconductor MMSZ5243B
