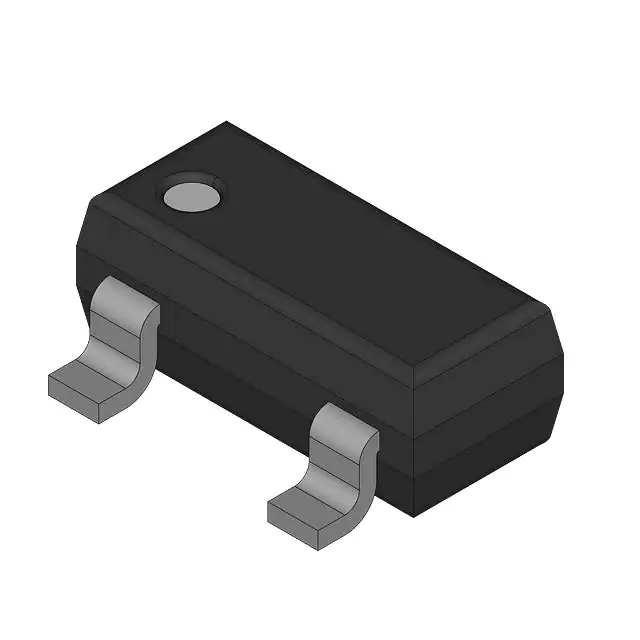

Fairchild Semiconductor-MMBZ5243B - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	MMBZ5243B	MMBZ5246B	MMBZ5244B	MMBZ5245B	MMBZ5243BW	MMBZ5240B	MMBZ5241B	MMBZ5242B
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Rectron USA	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	13 V	16 V	14 V	15 V	13 V	10 V	11 V	12 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	225 mW	300 mW	300 mW	300 mW	200 mW	225 mW	300 mW	300 mW
Impedance (Max) (Zzt)	13 Ohms	17 Ohms	15 Ohms	16 Ohms	13 Ohms	17 Ohms	22 Ohms	30 Ohms
Current - Reverse Leakage @ Vr	500 nA @ 9.9 V	100 nA @ 12 V	100 nA @ 10 V	100 nA @ 11 V	500 nA @ 9.9 V	3 µA @ 8 V	2 µA @ 8.4 V	1 µA @ 9.1 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C (TJ)	-	-	-	-	-65°C ~ 150°C (TJ)	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	SC-70, SOT-323	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3	SOT-23	SOT-23	SOT-23	SOT-323	SOT-23-3	SOT-23	SOT-23

Fairchild Semiconductor MMBZ5243B
