Fairchild Semiconductor-MMBT3906T-FS - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	PNP
Current - Collector (Ic) (Max):	200 mA
Voltage - Collector Emitter Breakdown (Max):	40 V
Vce Saturation (Max) @ Ib, Ic:	400mV @ 5mA, 50mA
Current - Collector Cutoff (Max):	50nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 10mA, 1V
Power - Max:	250 mW
Frequency - Transition:	250MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-89, SOT-490
Supplier Device Package:	SOT-523F

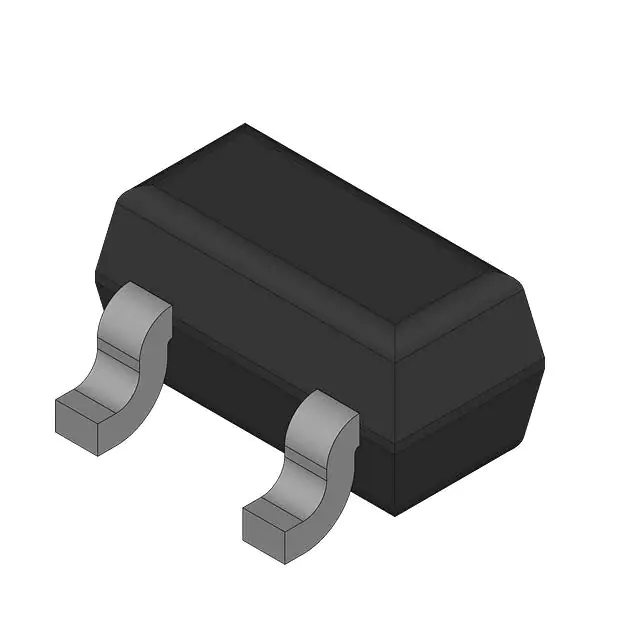

Fairchild Semiconductor MMBT3906T-FS
