Please send RFQ , we will respond immediately.

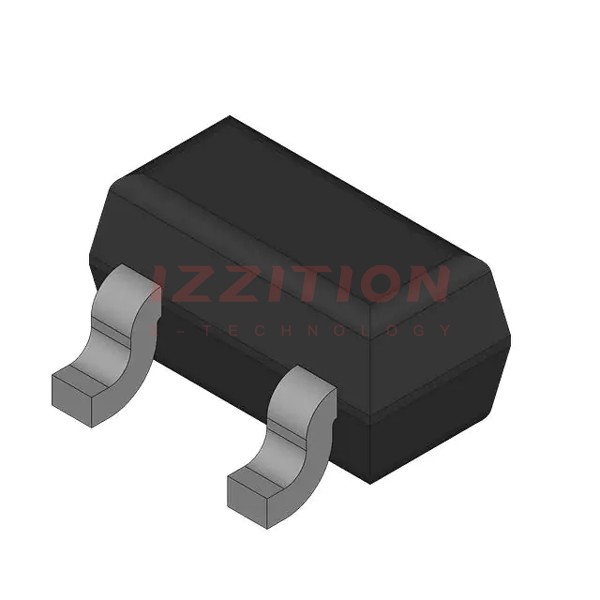

| Part Number | MMBT2222AT | MMBT2222A | MMBT2222AK |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | NTE Electronics, Inc | onsemi |
| Product Status | Active | Active | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 600 mA | 1 A | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 40 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA | 1V @ 50mA, 500mA | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | - | 10nA (ICBO) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 1V | 100 @ 150mA, 10V | 100 @ 150mA, 10V |
| Power - Max | 250 mW | 350 mW | 350 mW |
| Frequency - Transition | 300MHz | 300MHz | 300MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-89, SOT-490 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-523F | SOT-23-3 | SOT-23-3 |
