Please send RFQ , we will respond immediately.

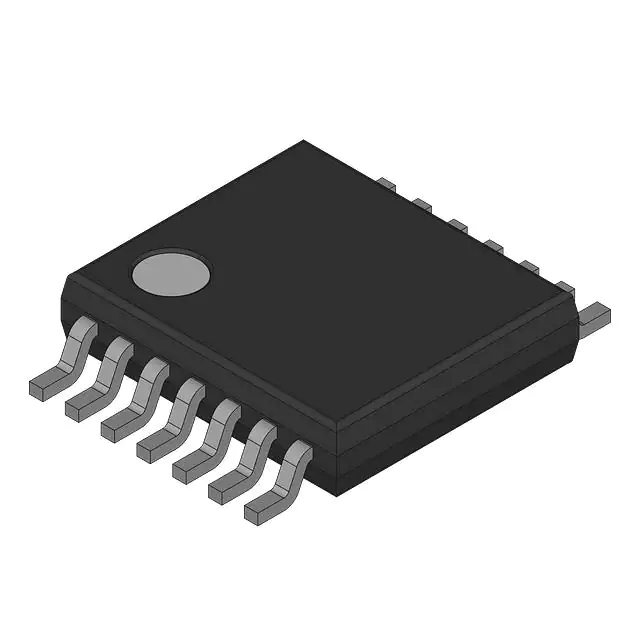

| Part Number | MM74HCT04MTC | MM74HCT05MTC | MM74HCT08MTC | MM74HCT04MTCX | MM74HCU04MTC | MM74HCT14MTC | MM74HC04MTC | MM74HCT00MTC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Logic Type | XNOR (Exclusive NOR) | Inverter | AND Gate | Inverter | Inverter | Inverter | Inverter | NAND Gate |
| Number of Circuits | 4 | 6 | 4 | 6 | 6 | 6 | 6 | 4 |
| Number of Inputs | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 2 |
| Features | - | Open Drain | - | - | - | Schmitt Trigger | - | - |
| Voltage - Supply | 2V ~ 6V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 6V | 4.5V ~ 5.5V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 1 µA | 2 µA | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA | -, 4.8mA | 4.8mA, 4.8mA | 4.8mA, 4.8mA | 5.2mA, 7.8mA | 4.8mA, 4.8mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V | 0.8V | 0.3V ~ 1.1V | 0.5V ~ 0.6V | 0.5V ~ 1.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V | 2V | 1.7V ~ 4.8V | 1.9V ~ 2.1V | 1.5V ~ 4.2V | 2V |
| Max Propagation Delay @ V, Max CL | 20ns @ 6V, 50pF | 15ns @ 5V, 50pF | 18ns @ 5V, 50pF | 20ns @ 5V, 50pF | 14ns @ 6V, 50pF | 20ns @ 5V, 50pF | 16ns @ 6V, 50pF | 20ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) |
