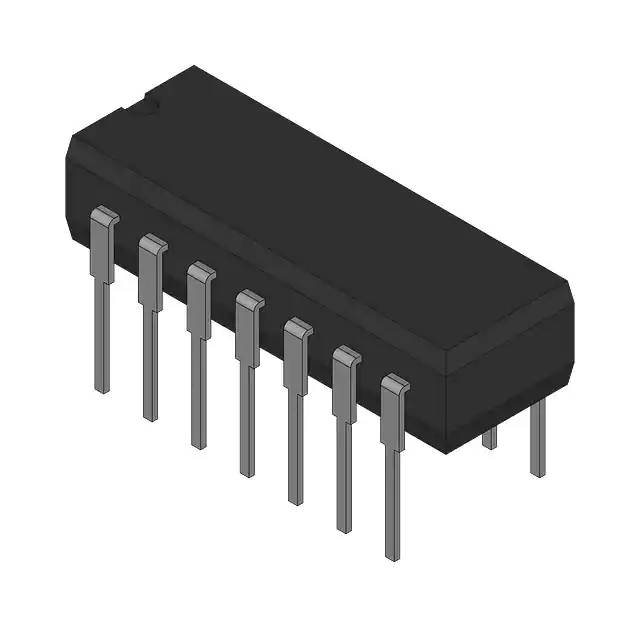

| Part Number | MM74HC86J | MM74HC86SJ | MM74HC86N | MM74HC86M |
|---|---|---|---|---|
| Manufacturer | National Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Active | Obsolete | Obsolete | Active |
| Logic Type | XNOR (Exclusive NOR) | XOR (Exclusive OR) | XOR (Exclusive OR) | XOR (Exclusive OR) |
| Number of Circuits | 4 | 4 | 4 | 4 |
| Number of Inputs | 2 | 2 | 2 | 2 |
| Features | - | - | - | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Logic Level - Low | 0.3V ~ 1.2V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 20ns @ 6V, 50pF | 20ns @ 6V, 50pF | 20ns @ 6V, 50pF | 20ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Surface Mount |
| Supplier Device Package | 14-CERDIP | 14-SOP | 14-DIP | 14-SOIC |
| Package / Case | 14-CDIP (0.300", 7.62mm) | 14-SOIC (0.209", 5.30mm Width) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
