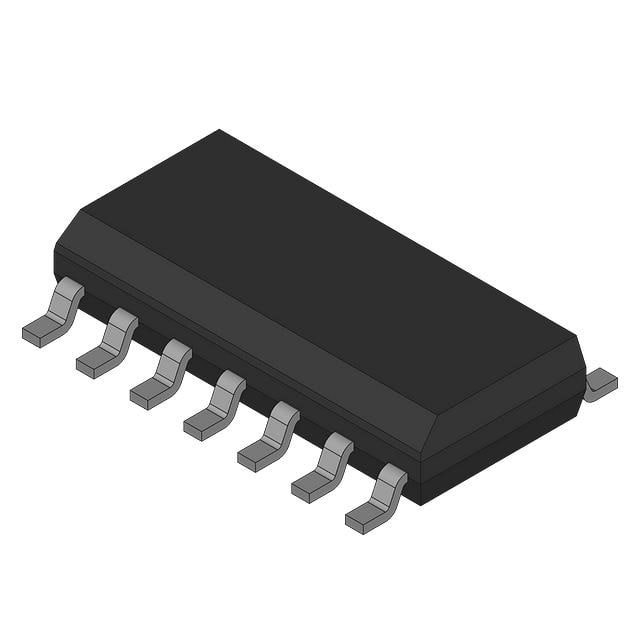

| Part Number | MM74HC08SJ | MM74HCT08SJ | MM74HC08SJX | MM74HC00SJ | MM74HC02SJ | MM74HC04SJ |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete |
| Logic Type | AND Gate | AND Gate | AND Gate | NAND Gate | NOR Gate | Inverter |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 | 6 |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 | 1 |
| Features | - | - | - | - | - | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V | 0.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V | 2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 20ns @ 6V, 50pF | 20ns @ 6V, 50pF | 20ns @ 6V, 50pF | 15ns @ 6V, 50pF | 15ns @ 6V, 50pF | 16ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOP | 14-SOP | 14-SOP | 14-SOP | 14-SOP | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) |
