Please send RFQ , we will respond immediately.

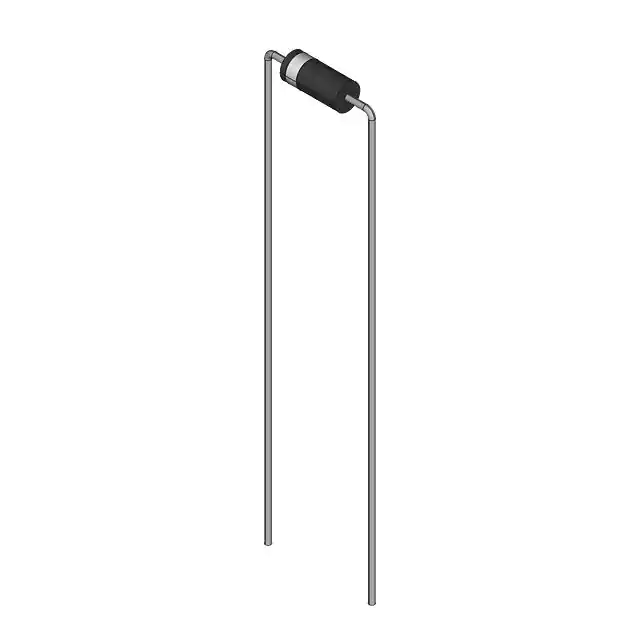

| Part Number | MM5Z36V | MM5Z39V | MM5Z56V | MM5Z16V | MM5Z30V | MM5Z33V | MM5Z36 | MM5Z36B |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | onsemi | Fairchild Semiconductor | Diotec Semiconductor | Rectron USA |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 36 V | 39 V | 56 V | 16 V | 30 V | 33 V | 36 V | - |
| Tolerance | ±6% | ±5% | ±7% | ±6% | ±7% | ±6.06% | ±5% | - |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | - |
| Impedance (Max) (Zzt) | 90 Ohms | 130 Ohms | 200 Ohms | 40 Ohms | 80 Ohms | 80 Ohms | 90 Ohms | - |
| Current - Reverse Leakage @ Vr | 50 nA @ 25.2 V | 50 nA @ 27.3 V | 50 nA @ 39.2 V | 50 nA @ 11.2 V | 50 nA @ 21 V | 50 nA @ 23.2 V | 50 nA @ 25.2 V | - |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | SC-79, SOD-523F | SC-79, SOD-523F | SC-79, SOD-523F | SC-79, SOD-523F | SC-79, SOD-523F | SC-79, SOD-523 | SC-79, SOD-523 | - |
| Supplier Device Package | SOD-523F | SOD-523F | SOD-523F | SOD-523F | SOD-523F | SOD-523F | SOD-523 | - |
