Please send RFQ , we will respond immediately.

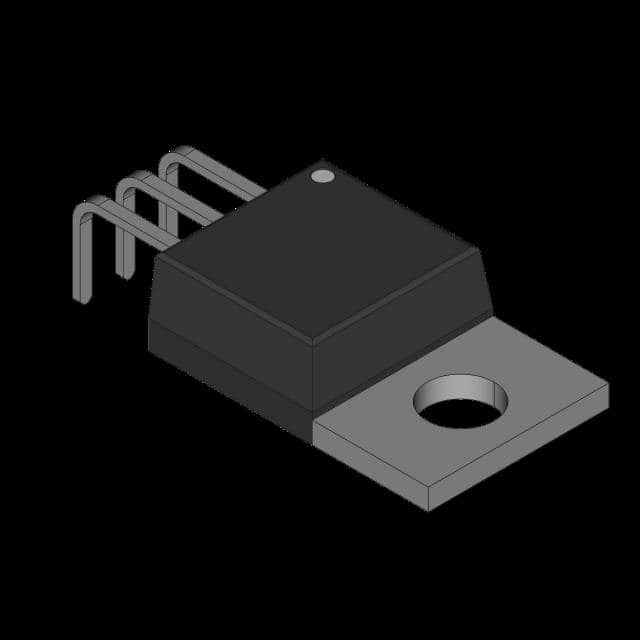

| Part Number | MBR1535CT | MBR1535CTG | MBR1545CT | MBR1035CT | MBR1530CT |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | SMC Diode Solutions | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Obsolete | Active | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 35 V | 35 V | 45 V | 35 V | 30 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 7.5A | - | 10A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 840 mV @ 15 A | 840 mV @ 15 A | 840 mV @ 15 A | 840 mV @ 10 A | 840 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 35 V | 100 µA @ 35 V | 1 mA @ 45 V | 100 µA @ 35 V | 100 µA @ 30 V |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 175°C | -55°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220-3 | TO-220 | TO-220AB | TO-220-3 | TO-220-3 |
