National Semiconductor-LP5951MG-1.5-NS - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	1.5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.35V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	55 µA
Current - Supply (Max):	70 µA
PSRR:	60dB ~ 50dB (100Hz ~ 10kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:	SC-70-5

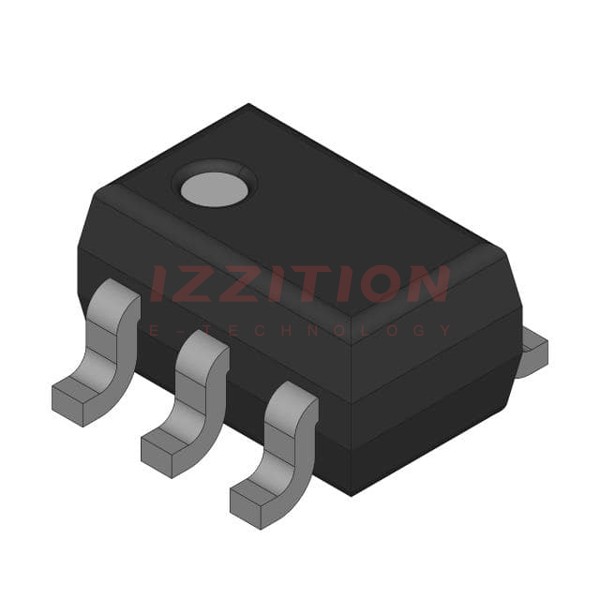

National Semiconductor LP5951MG-1.5-NS
