Please send RFQ , we will respond immediately.
| Part Number | LP3985IM5-3.0 | LP3985IM5-3.3 | LP3985IM5X-3.0 | LP3985IM5-3.2 | LP3985IM5-5.0 |
|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Not For New Designs | Not For New Designs | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6V | 6V | 6V | 6V | 6V |
| Voltage - Output (Min/Fixed) | 3V | 3.3V | 3V | 3.2V | 5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.1V @ 150mA | 0.1V @ 150mA | 0.1V @ 150mA | 0.1V @ 150mA | 0.1V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA |
| Current - Supply (Max) | 200 µA | 250 µA | 250 µA | 250 µA | 250 µA |
| PSRR | 50dB ~ 40dB (1kHz ~ 10kHz) | 50dB ~ 40dB (1kHz ~ 10kHz) | 50dB ~ 40dB (1kHz ~ 10kHz) | 50dB ~ 40dB (1kHz ~ 10kHz) | 50dB ~ 40dB (1kHz ~ 10kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

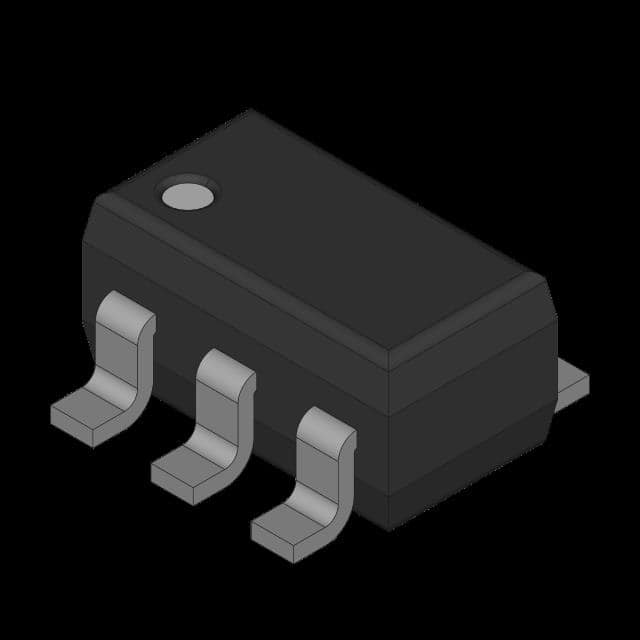

| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
