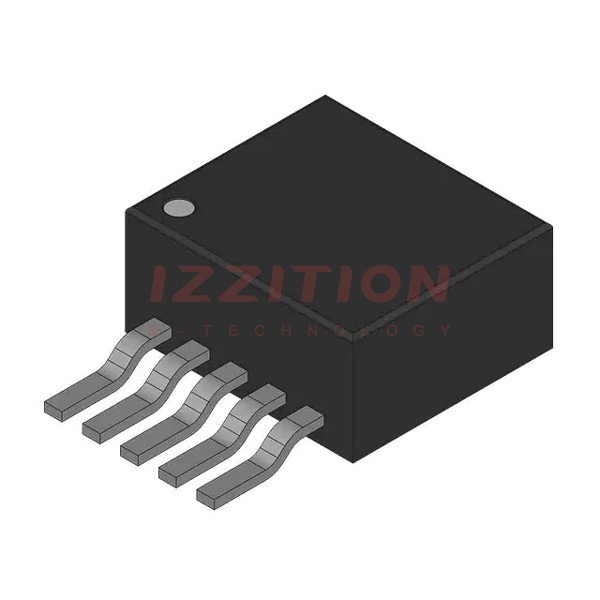

| Part Number | LP3961ES-1.8 | LP3962ES-1.8 | LP3964ES-1.8 | LP3961ESX-1.8 |
|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | National Semiconductor | Texas Instruments |
| Product Status | Active | Active | Active | Obsolete |
| Output Configuration | - | Positive | - | Positive |
| Output Type | - | Fixed | - | Fixed |
| Number of Regulators | - | 1 | - | 1 |
| Voltage - Input (Max) | - | 7V | - | 7V |
| Voltage - Output (Min/Fixed) | - | 1.8V | - | 1.8V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | - | 0.55V @ 1.5A | - | 0.35V @ 800mA |
| Current - Output | - | 1.5A | - | 800mA |
| Current - Quiescent (Iq) | - | 9 mA | - | 9 mA |
| Current - Supply (Max) | - | 15 mA | - | 15 mA |
| PSRR | - | - | - | - |
| Control Features | - | Enable | - | Enable |
| Protection Features | - | Over Current, Over Temperature, Short Circuit | - | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | - | -40°C ~ 125°C | - | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | - | Surface Mount |
| Package / Case | - | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | - | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | - | DDPAK/TO-263-5 | - | DDPAK/TO-263-5 |
