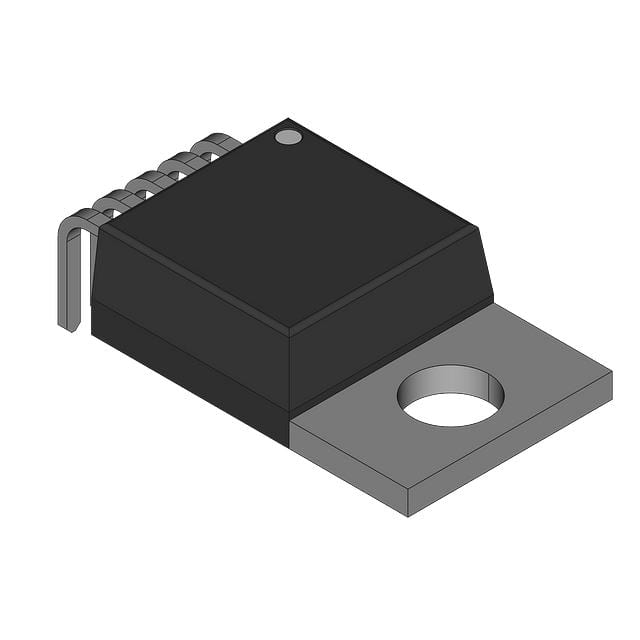

| Part Number | LP38858T-0.8/NOPB | LP38859T-0.8/NOPB | LP38855T-0.8/NOPB | LP38856T-0.8/NOPB | LP38858S-0.8/NOPB |
|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | Texas Instruments | National Semiconductor | National Semiconductor |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.18V @ 1.5A | 0.45V @ 3A | 0.180V @ 1.5A | 0.45V @ 3A | 0.18V @ 1.5A |
| Current - Output | 1.5A | 3A | 1.5A | 3A | 1.5A |
| Current - Quiescent (Iq) | 9 mA | 8.5 mA | 300 µA | 300 µA | 9 mA |
| Current - Supply (Max) | 15 mA | 15 mA | 15 mA | 15 mA | 15 mA |
| PSRR | 80dB ~ 58dB (120Hz ~ 1kHz) | 80dB ~ 65dB (120Hz ~ 1kHz) | 80dB ~ 58dB (120Hz ~ 1kHz) | 80dB ~ 65dB (120Hz ~ 1kHz) | 80dB ~ 58dB (120Hz ~ 1kHz) |
| Control Features | Soft Start | Soft Start | Enable | Enable | Soft Start |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 | DDPAK/TO-263-5 |
