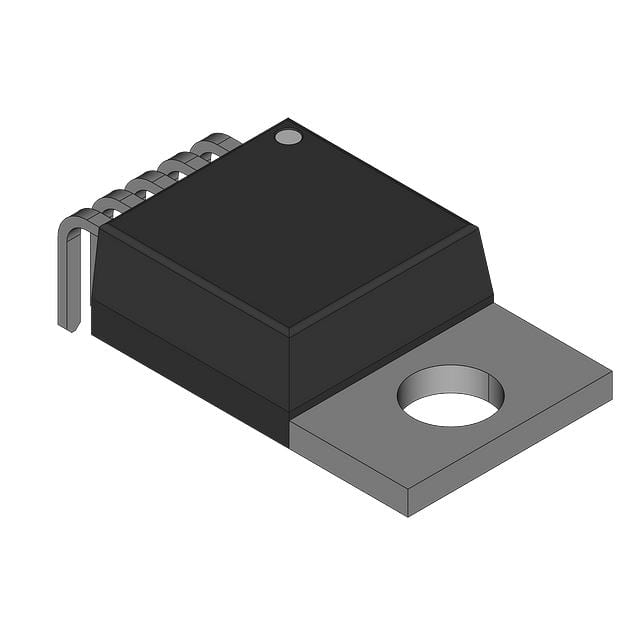

| Part Number | LP3876ET-3.3/NOPB | LP3874ET-3.3/NOPB | LP3875ET-3.3/NOPB | LP3876ES-3.3/NOPB |
|---|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 7V | 7V | 7V | 7V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 1.2V @ 3A | 0.35V @ 800mA | 0.55V @ 1.5A | 1.2V @ 3A |
| Current - Output | 3A | 800mA | 1.5A | 3A |
| Current - Quiescent (Iq) | 5 mA | 9 mA | 5 mA | 5 mA |
| Current - Supply (Max) | 15 mA | 15 mA | 15 mA | 15 mA |
| PSRR | - | 73dB ~ 57dB (120Hz) | 73dB ~ 57dB (120Hz) | - |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-5 | DDPAK/TO-263-5 |
