Please send RFQ , we will respond immediately.

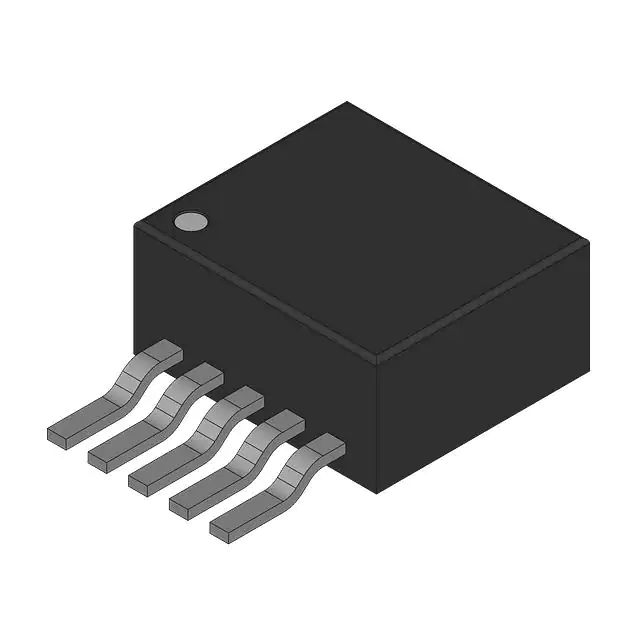

| Part Number | LP38511TJ-1.8/NOPB | LP38512TJ-1.8/NOPB | LP38511TS-1.8/NOPB |
|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V | 1.8V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.26V @ 800mA | 0.40V @ 1.5A | 0.26V @ 800mA |
| Current - Output | 800mA | 1.5A | 800mA |
| Current - Quiescent (Iq) | 3.5 µA | 7.5 mA | 3.5 µA |
| Current - Supply (Max) | 13 mA | 14 mA | 13 mA |
| PSRR | 73dB ~ 70dB (120Hz ~ 1kHz) | 73dB (120Hz ~ 1kHz) | 73dB ~ 70dB (120Hz ~ 1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-5 Thin | TO-263-5 Thin | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 Thin | TO-263-5 Thin | DDPAK/TO-263-5 |
