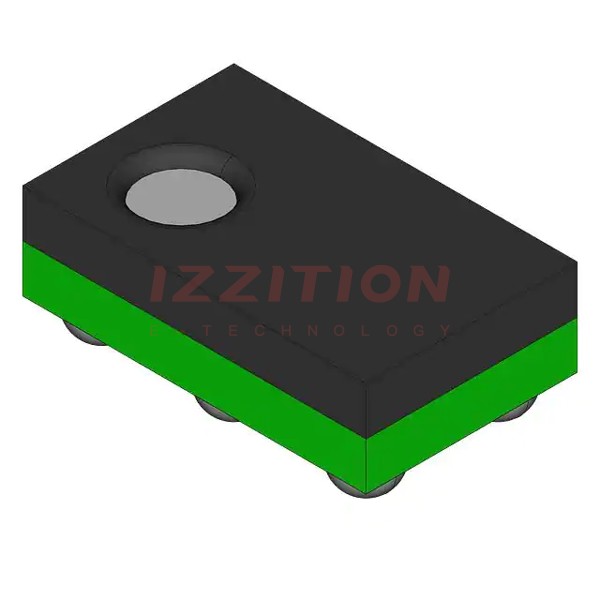

| Part Number | LP2985AIBP-3.0 | LP2985AIBP-3.6 | LP2985AIBP-3.3 | LP2985AIBP-5.0 | LP2985AIBP-4.0 | LP2985AIBL-3.0 |
|---|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | - | Positive | Positive | Positive | Positive |
| Output Type | Fixed | - | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | - | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | - | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 3V | - | 3.3V | 5V | 4V | 3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.58V @ 150mA | - | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA |
| Current - Output | 150mA | - | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 95 µA | - | 95 µA | 95 µA | 95 µA | 95 µA |
| Current - Supply (Max) | 2.5 mA | - | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA |
| PSRR | 45dB (1kHz) | - | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) |
| Control Features | Enable | - | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | - | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 5-VFBGA | - | 5-VFBGA | 5-VFBGA | 5-VFBGA | 5-VFBGA |
| Supplier Device Package | 5-µSMD (0.93x1.11) | - | 5-µSMD (0.93x1.11) | 5-µSMD (0.93x1.11) | 5-µSMD (0.93x1.11) | 5-µSMD (1.03x1.41) |
