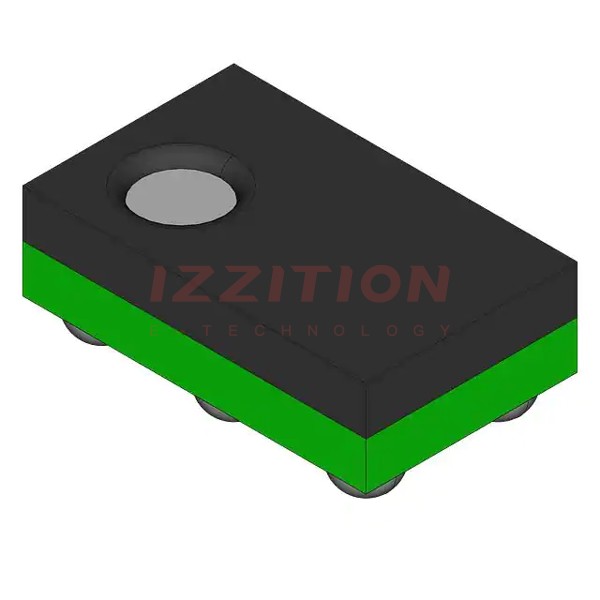

| Part Number | LP2985AIBP-2.4 | LP2985AIBPX-2.4 | LP2985AIBP-2.5 | LP2985AIBP-2.8 | LP2985AIBP-2.9 |
|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | - | Positive | Positive | Positive |
| Output Type | Fixed | - | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | - | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | - | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 2.4V | - | 2.5V | 2.8V | 2.9V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.58V @ 150mA | - | 0.58V @ 150mA | 0.58V @ 150mA | 0.58V @ 150mA |
| Current - Output | 150mA | - | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 95 µA | - | 95 µA | 95 µA | 95 µA |
| Current - Supply (Max) | 2.5 mA | - | 2.5 mA | 2.5 mA | 2.5 mA |
| PSRR | 45dB (1kHz) | - | 45dB (1kHz) | 45dB (1kHz) | 45dB (1kHz) |
| Control Features | Enable | - | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | - | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 5-VFBGA | - | 5-VFBGA | 5-VFBGA | 5-VFBGA |
| Supplier Device Package | 5-µSMD (0.93x1.11) | - | 5-µSMD (0.93x1.11) | 5-µSMD (0.93x1.11) | 5-µSMD (0.93x1.11) |
