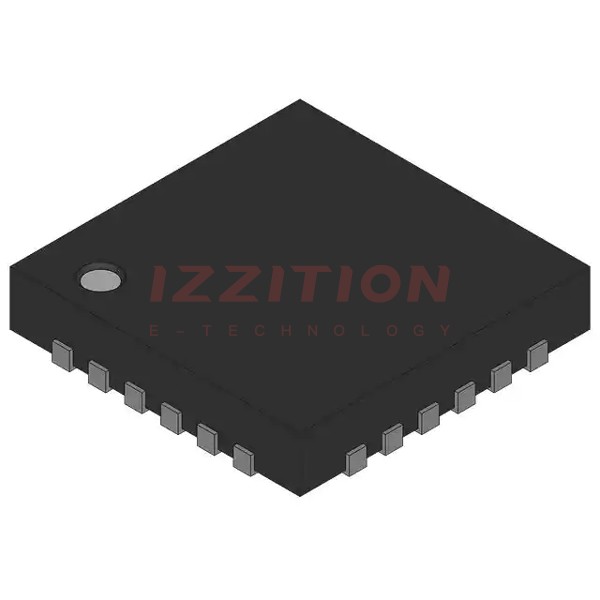

| Part Number | LMX2370SLBX | LMX2370SLDX | LMX2372SLBX | LMX2371SLBX | LMX2350SLBX |
|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | National Semiconductor | National Semiconductor | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | PLL Frequency Synthesizer | PLL Frequency Synthesizer | PLL Frequency Synthesizer | PLL Frequency Synthesizer | PLL Frequency Synthesizer |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Input | CMOS, TTL | CMOS, TTL | CMOS, TTL | CMOS, TTL | CMOS, TTL |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 3:1 | 3:1 | 3:1 | 3:1 | 3:3 |
| Differential - Input:Output | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Frequency - Max | 2.5GHz, 1.2GHz | 2.5GHz, 1.2GHz | 1.2GHz | 2GHz, 1.2GHz | 2.5GHz, 550MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-TFQFN, CSP | 24-TFQFN, CSP | 24-TFQFN, CSP | 24-TFQFN, CSP | 24-TFQFN, CSP |
| Supplier Device Package | 24-CSP (4.5x3.5) | 24-CSP (4.5x3.5) | 24-CSP (4.5x3.5) | 24-CSP (4.5x3.5) | 24-CSP (4.5x3.5) |
