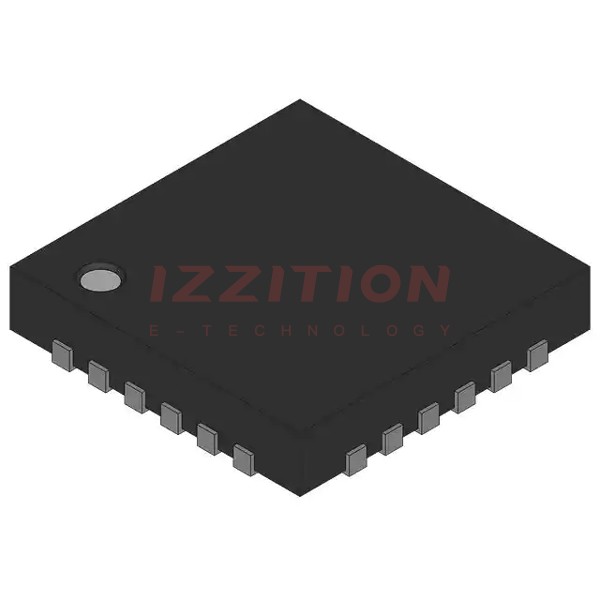

National Semiconductor-LMX2354SLBX - Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers Product Specifications and Latest Quotes

Part Number	LMX2354SLBX	LMX2354SLDX	LMX2354SLEX	LMX2324SLBX	LMX2350SLBX	LMX2352SLBX	LMX2353SLBX
Manufacturer	National Semiconductor	National Semiconductor	National Semiconductor	National Semiconductor	Texas Instruments	Texas Instruments	Texas Instruments
Product Status	Active	Active	Active	Obsolete	Obsolete	Obsolete	Obsolete
Type	PLL Frequency Synthesizer	-	-	PLL Frequency Synthesizer	PLL Frequency Synthesizer	PLL Frequency Synthesizer	PLL Frequency Synthesizer
PLL	Yes with Bypass	-	-	Yes	Yes with Bypass	Yes with Bypass	Yes with Bypass
Input	CMOS, TTL	-	-	CMOS, TTL	CMOS, TTL	CMOS, TTL	CMOS, TTL
Output	CMOS	-	-	Clock	CMOS	CMOS	CMOS
Number of Circuits	1	-	-	1	1	1	1
Ratio - Input:Output	3:3	-	-	1:1	3:3	3:3	2:1
Differential - Input:Output	Yes/No	-	-	No/No	Yes/No	Yes/No	Yes/No
Frequency - Max	2.5GHz, 550MHz	-	-	2GHz	2.5GHz, 550MHz	1.2GHz, 550MHz	2.5GHz
Divider/Multiplier	Yes/Yes	-	-	Yes/No	Yes/No	Yes/No	Yes/Yes
Voltage - Supply	2.7V ~ 5.5V	-	-	2.7V ~ 5.5V	2.7V ~ 5.5V	2.7V ~ 5.5V	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 85°C	-	-	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Surface Mount	-	-	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	24-TFQFN, CSP	-	-	16-TFQFN, CSP	24-TFQFN, CSP	24-TFQFN, CSP	16-TFQFN, CSP
Supplier Device Package	24-CSP (4.5x3.5)	-	-	16-CSP (3.5x3.5)	24-CSP (4.5x3.5)	24-CSP (4.5x3.5)	16-CSP (3.5x3.5)

National Semiconductor LMX2354SLBX
