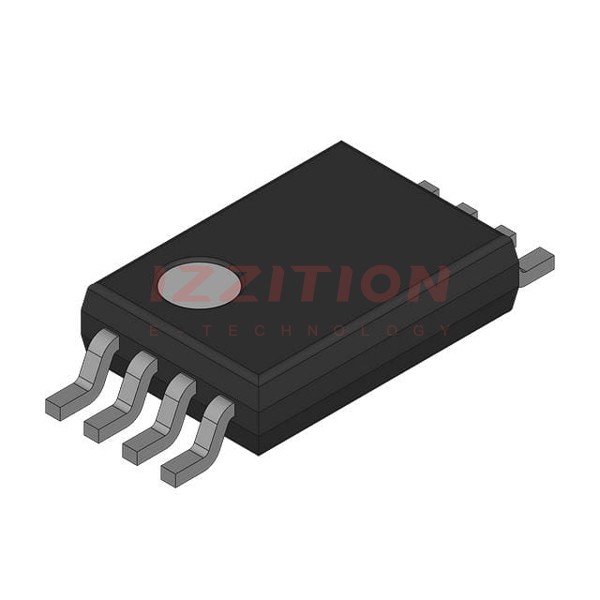

| Part Number | LM5112MY | LM5112MYX |
|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments |
| Product Status | Active | Obsolete |
| Driven Configuration | Low-Side | Low-Side |
| Channel Type | Single | Single |
| Number of Drivers | 1 | 1 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 3.5V ~ 14V | 3.5V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V | 0.8V, 2.3V |
| Current - Peak Output (Source, Sink) | 3A, 7A | 3A, 7A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - |
| Rise / Fall Time (Typ) | 14ns, 12ns | 14ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-PowerPad | 8-HVSSOP |
