Please send RFQ , we will respond immediately.

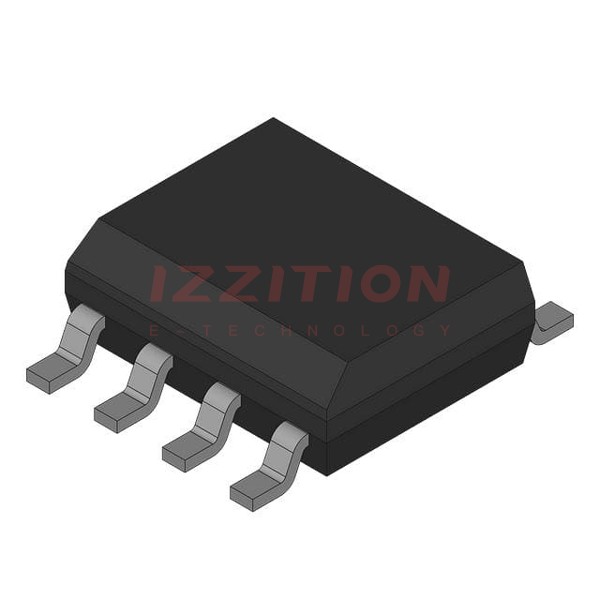

| Part Number | LM5111-2MX | LM5111-3MX | LM5111-2MYX | LM5111-2MY | LM5110-2MX | LM5111-1MX | LM5111-2M |
|---|---|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 3.5V ~ 14V | 3.5V ~ 14V | 3.5V ~ 14V | 3.5V ~ 14V | 3.5V ~ 14V | 3.5V ~ 14V | 3.5V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 3A, 5A | 3A, 5A | 3A, 5A | 3A, 5A | 3A, 5A | 3A, 5A | 3A, 5A |
| Input Type | Inverting | Inverting, Non-Inverting | Inverting | Inverting | Inverting | Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 14ns, 12ns | 14ns, 12ns | 14ns, 12ns | 14ns, 12ns | 14ns, 12ns | 14ns, 12ns | 14ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-HVSSOP | 8-HVSSOP | 8-SOIC | 8-SOIC | 8-SOIC |
