Please send RFQ , we will respond immediately.

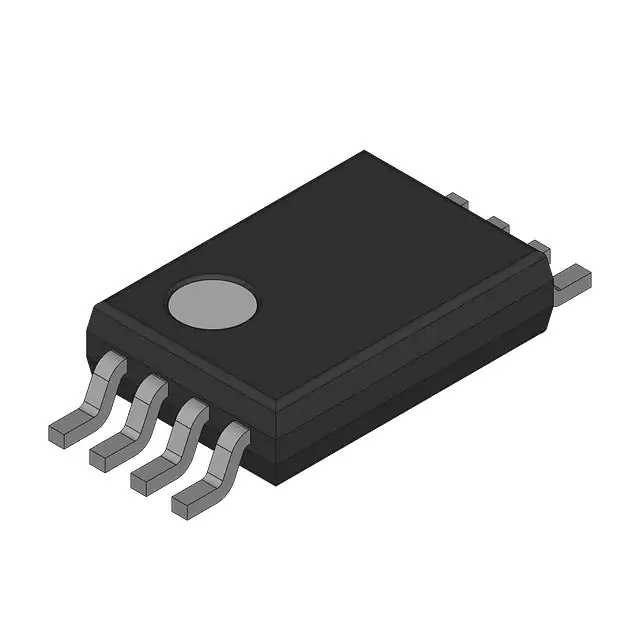

| Part Number | LM5100CMY/NOPB | LM5100CMYE/NOPB | LM5101CMY/NOPB | LM5100CMYX/NOPB |
|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Obsolete |
| Driven Configuration | - | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | - | Independent | Independent | Independent |
| Number of Drivers | - | 2 | 2 | 2 |
| Gate Type | - | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | - | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V |
| Logic Voltage - VIL, VIH | - | 2.3V, - | 2.3V, - | 2.3V, - |
| Current - Peak Output (Source, Sink) | - | 1A, 1A | 1A, 1A | 1A, 1A |
| Input Type | - | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | 118 V | 118 V | 118 V |
| Rise / Fall Time (Typ) | - | 990ns, 715ns | 990ns, 715ns | 990ns, 715ns |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | - | 8-MSOP-PowerPad | 8-HVSSOP | 8-MSOP PowerPad |
