Please send RFQ , we will respond immediately.

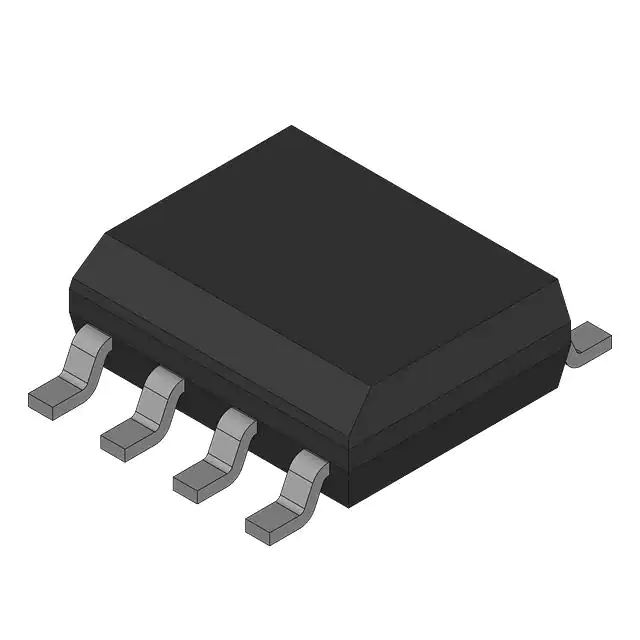

| Part Number | LM431CCMX | LM431CCZX | LM431CIMX | LM431ACMX | LM431BCMX | LM431CCM | LM431CCM3 | LM431CCM3X |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | National Semiconductor | onsemi | onsemi | National Semiconductor | National Semiconductor |
| Product Status | Active | Obsolete | Active | Active | Active | Obsolete | Active | Active |
| Reference Type | - | Shunt | Shunt | - | - | Shunt | Shunt | Shunt |
| Output Type | - | Adjustable | Adjustable | - | - | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | - | 2.495V | 2.495V | - | - | 2.495V | 2.5V | 2.5V |
| Voltage - Output (Max) | - | 36 V | 36 V | - | - | 36 V | 37 V | 37 V |
| Current - Output | - | 100 mA | 100 mA | - | - | 100 mA | 100 mA | 100 mA |
| Tolerance | - | ±0.5% | ±0.5% | - | - | ±0.5% | -0.6%, +0.4% | - |
| Temperature Coefficient | - | 50ppm/°C Typical | 50ppm/°C Typical | - | - | 50ppm/°C Typical | 50ppm/°C Typical | 50ppm/°C Typical |
| Noise - 0.1Hz to 10Hz | - | - | - | - | - | - | - | - |
| Noise - 10Hz to 10kHz | - | - | - | - | - | - | - | - |
| Voltage - Input | - | - | - | - | - | - | - | - |
| Current - Supply | - | - | - | - | - | - | - | - |
| Current - Cathode | - | 1 mA | 1 mA | - | - | 1 mA | 1 mA | 1 mA |
| Operating Temperature | - | -25°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - | - | -25°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | - | Through Hole | Surface Mount | - | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | 8-SOIC (0.154", 3.90mm Width) | - | - | 8-SOIC (0.154", 3.90mm Width) | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | - | TO-92-3 | 8-SOIC | - | - | 8-SOIC | SOT-23-3 | SOT-23-3 |
