Please send RFQ , we will respond immediately.

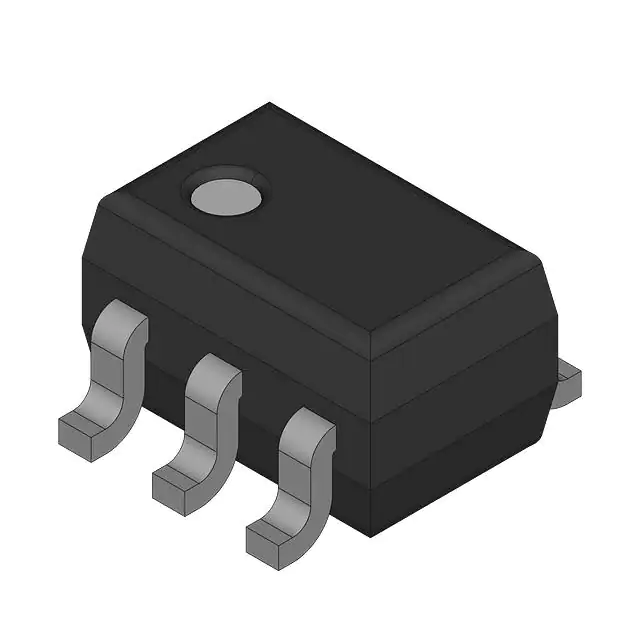

| Part Number | LM4041DIM7X-1.2 | LM4041DIMX-1.2 | LM4041EIM7X-1.2 | LM4041CIM7X-1.2 | LM4041DIM3X-1.2 |
|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| Reference Type | Shunt | - | Shunt | Shunt | Shunt |
| Output Type | Fixed | - | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 1.225V | - | 1.225V | 1.225V | 1.225V |
| Voltage - Output (Max) | - | - | - | - | - |
| Current - Output | 12 mA | - | 12 mA | 12 mA | 12 mA |
| Tolerance | ±1% | - | ±2% | ±0.5% | ±1% |
| Temperature Coefficient | 150ppm/°C | - | 150ppm/°C | 100ppm/°C | 150ppm/°C |
| Noise - 0.1Hz to 10Hz | - | - | - | - | - |
| Noise - 10Hz to 10kHz | 20µVrms | - | 20µVrms | 20µVrms | 20µVrms |
| Voltage - Input | - | - | - | - | - |
| Current - Supply | - | - | - | - | - |
| Current - Cathode | 70 µA | - | 65 µA | 65 µA | 70 µA |
| Operating Temperature | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | - | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-70-5 | - | SC-70-5 | SC-70-5 | SOT-23-3 |
