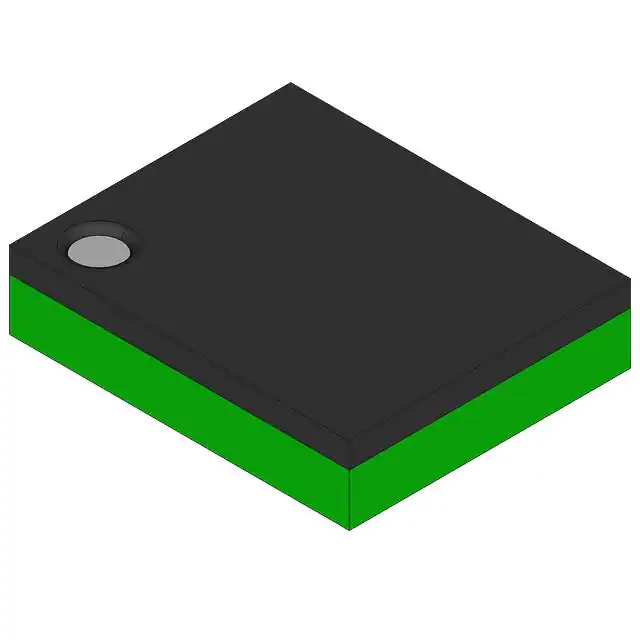

| Part Number | LM3502ITL-25/NOPB | LM3502ITLX-25/NOPB | LM3502ITL-35/NOPB |
|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 2 | 2 | 2 |
| Voltage - Supply (Min) | 2.5V | 2.5V | 2.5V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 25V | 25V | 35V |
| Current - Output / Channel | 600mA (Switch) | 600mA (Switch) | 750mA (Switch) |
| Frequency | 1MHz | 1MHz | 1MHz |
| Dimming | PWM | PWM | PWM |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFBGA, DSBGA | 10-WFBGA, DSBGA | 10-WFBGA, DSBGA |
| Supplier Device Package | 10-DSBGA | 10-TµSMD (1.9x2.07) | 10-TµSMD (1.9x2.07) |
