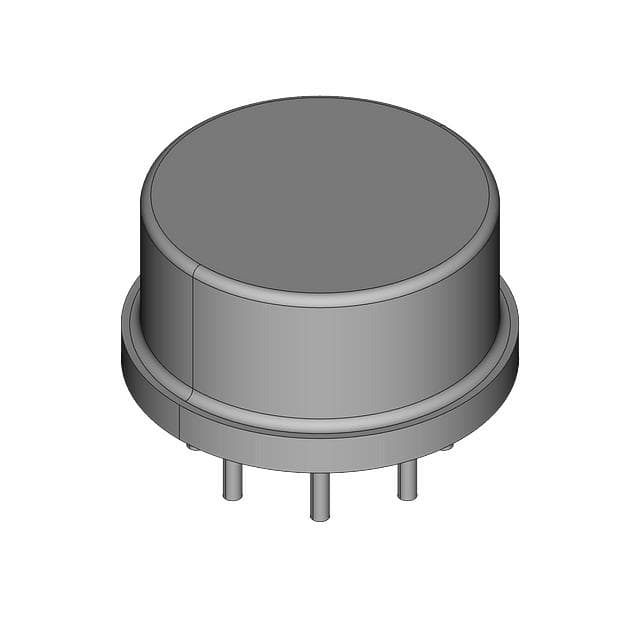

| Part Number | LM293H | LM293P | LM293N | LM293D |
|---|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Active |
| Type | General Purpose | Differential | General Purpose | General Purpose |
| Number of Elements | 2 | 2 | 2 | 2 |
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL | CMOS, MOS, Open-Drain, TTL | CMOS, DTL, ECL, MOS, Open-Collector, TTL | CMOS, DTL, ECL, MOS, Open-Collector, TTL |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V | 2V ~ 36V, ±1V ~ 18V | 2V ~ 36V, ±1V ~ 18V | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 5mV @ 30V | 5mV @ 30V | 5mV @ 30V | 5mV @ 30V |
| Current - Input Bias (Max) | 0.25µA @ 5V | 0.25µA @ 5V | 0.25µA @ 5V | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V | 20mA | 18mA @ 5V | 18mA @ 5V |
| Current - Quiescent (Max) | 2.5mA | 2.5mA | 2.5mA | 2.5mA |
| CMRR, PSRR (Typ) | - | - | - | - |
| Propagation Delay (Max) | 700ns | - | - | - |
| Hysteresis | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package / Case | TO-99-8 Metal Can | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | TO-99-8 | 8-PDIP | 8-DIP | 8-SOIC |
