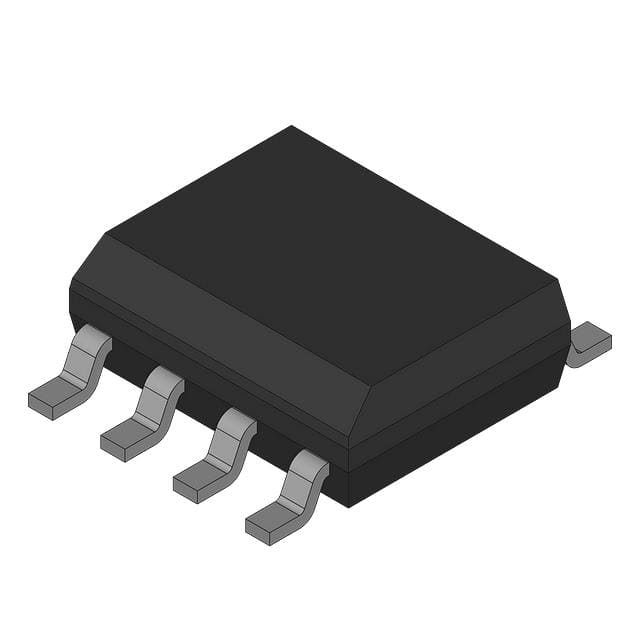

| Part Number | LM2936M-3.0 | LM2936Z-3.0 | LM2936M-5.0 | LM2936M-3.3 | LM2936MM-3.0 | LM2936MP-3.0 |
|---|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Not For New Designs | Not For New Designs | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 3V | 3V | 5V | 3.3V | 3V | 3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.4V @ 50mA | 0.4V @ 50mA | 0.4V @ 50mA | 0.4V @ 50mA | 0.4V @ 50mA | 0.4V @ 50mA |
| Current - Output | 50mA | 50mA | 50mA | 50mA | 50mA | 50mA |
| Current - Quiescent (Iq) | 15 µA | 20 µA | 9 µA | 15 µA | 15 µA | 15 µA |
| Current - Supply (Max) | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA | 2.5 mA |
| PSRR | 60dB (120Hz) | 60dB (120Hz) | 60dB (120Hz) | 60dB (120Hz) | 60dB (120Hz) | 60dB (120Hz) |
| Control Features | - | - | - | - | - | - |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | TO-226-3, TO-92-3 (TO-226AA) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | TO-261-4, TO-261AA |
| Supplier Device Package | 8-SOIC | TO-92-3 | 8-SOIC | 8-SOIC | 8-VSSOP | SOT-223-4 |
