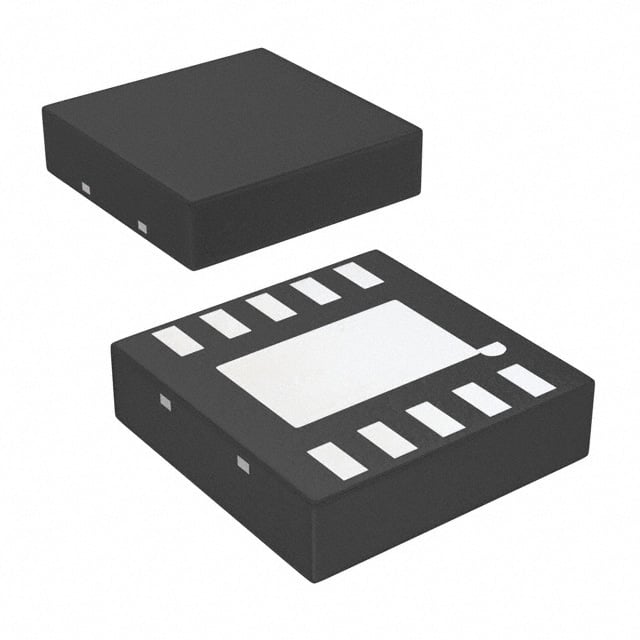

| Part Number | LM2792LD-L/NOPB | LM2792LDX-L/NOPB | LM2791LD-L/NOPB | LM2792LD-H/NOPB |
|---|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | National Semiconductor | Texas Instruments |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | - | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | - | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | Yes | - | Yes |
| Number of Outputs | 2 | 2 | - | 2 |
| Voltage - Supply (Min) | 3V | 3V | - | 3V |
| Voltage - Supply (Max) | 5.8V | 5.8V | - | 5.8V |
| Voltage - Output | - | - | - | - |
| Current - Output / Channel | 34mA | 34mA | - | 34mA |
| Frequency | 1.1MHz | 1.1MHz | - | 1.1MHz |
| Dimming | Analog, PWM | Analog, PWM | - | Analog, PWM |
| Applications | Backlight | Backlight | - | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | - | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | - | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (3x3) | 10-WSON (3x3) | - | 10-WSON (3x3) |
