| Part Number | LM258AH | LM258H | LM258AP | LM258AM | LM258AN | LM158AH | LM258AD |
|---|---|---|---|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | Texas Instruments | Fairchild Semiconductor | STMicroelectronics | Texas Instruments | National Semiconductor |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Output Type | - | - | - | - | - | - | - |
| Slew Rate | 0.3V/µs | - | 0.3V/µs | - | 0.6V/µs | - | 0.3V/µs |
| Gain Bandwidth Product | 700 kHz | 1 MHz | 700 kHz | - | 1.1 MHz | 1 MHz | 700 kHz |
| -3db Bandwidth | - | - | - | - | - | - | - |
| Current - Input Bias | 15 nA | 45 nA | 15 nA | 40 nA | 20 nA | 40 nA | 15 nA |
| Voltage - Input Offset | 2 mV | 2 mV | 2 mV | 1 mV | 1 mV | 2 mV | 2 mV |
| Current - Supply | 500µA (x2 Channels) | 1mA | 500µA (x2 Channels) | 800µA | 700µA (x2 Channels) | 1mA | 500µA (x2 Channels) |
| Current - Output / Channel | 40 mA | 40 mA | 40 mA | 30 mA | 40 mA | 40 mA | 40 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 32 V | 32 V | 32 V | 32 V | 30 V | 32 V | 32 V |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C | -25°C ~ 85°C (TA) | -25°C ~ 85°C | -40°C ~ 105°C | -55°C ~ 125°C | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Surface Mount |

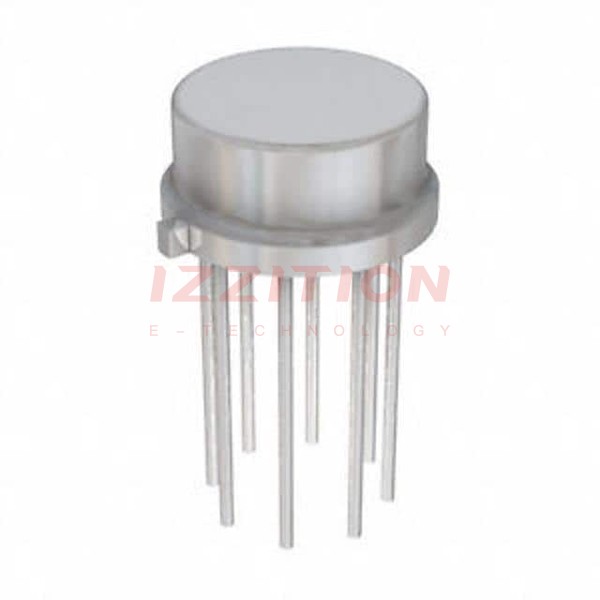

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | TO-99-8 Metal Can | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | TO-99-8 | TO-99-8 | 8-PDIP | 8-SOIC | 8-Mini DIP | TO-99-8 | 8-SOIC |
