Please send RFQ , we will respond immediately.

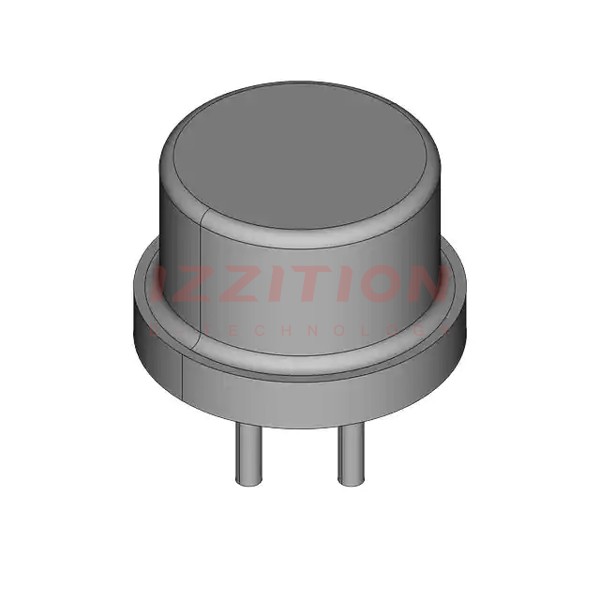

| Part Number | LM120K-15 | LM140K-15 | LM120H-15 |
|---|---|---|---|
| Manufacturer | National Semiconductor | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Configuration | - | Positive | Negative |
| Output Type | - | Fixed | Fixed |
| Number of Regulators | - | 1 | 1 |
| Voltage - Input (Max) | - | 35V | -35V |
| Voltage - Output (Min/Fixed) | - | 15V | -15V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | - | 2V @ 1A | - |
| Current - Output | - | 1A | 200mA |
| Current - Quiescent (Iq) | - | 6 mA | 1 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | - | 70dB (120Hz) | 64dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | - | Over Temperature, Short Circuit | Over Temperature |
| Operating Temperature | - | -55°C ~ 125°C | -55°C ~ 150°C |
| Mounting Type | - | Through Hole | Through Hole |
| Package / Case | - | TO-204AA, TO-3 | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | - | TO-3-2 | TO-3 |
