Fairchild Semiconductor-KSB564AYTA - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	KSB564AYTA	KSB564ACYTA	KSB564AGTA	KSB564AOTA
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	PNP	PNP	PNP
Current - Collector (Ic) (Max)	1 A	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	25 V	25 V	25 V	25 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A	500mV @ 100mA, 1A	500mV @ 100mA, 1A	500mV @ 100mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 100mA, 1V	120 @ 100mA, 1V	200 @ 100mA, 1V	70 @ 100mA, 1V
Power - Max	800 mW	800 mW	800 mW	800 mW
Frequency - Transition	110MHz	110MHz	110MHz	110MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA) Formed Leads	TO-226-3, TO-92-3 (TO-226AA) Formed Leads	TO-226-3, TO-92-3 (TO-226AA) Formed Leads	TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package	TO-92-3	TO-92-3	TO-92-3	TO-92-3

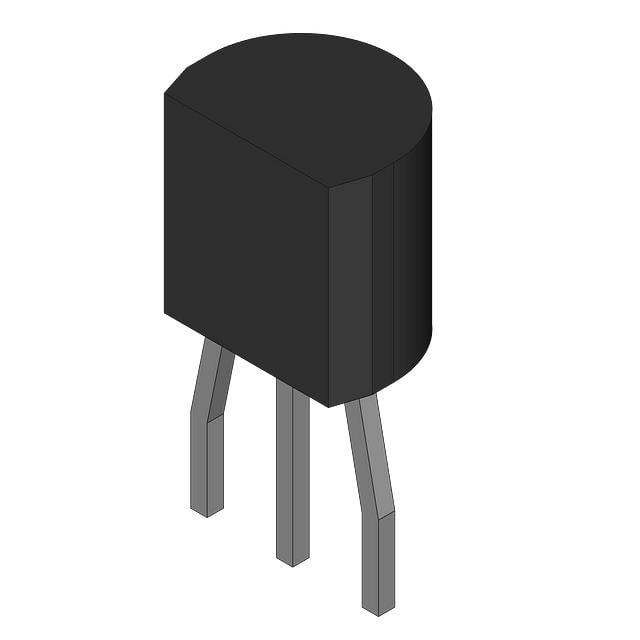

Fairchild Semiconductor KSB564AYTA

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	25 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 100mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 100mA, 1V
Power - Max:	800 mW
Frequency - Transition:	110MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package:	TO-92-3
