Fairchild Semiconductor-KSA1220YSTU - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1.2 A
Voltage - Collector Emitter Breakdown (Max):	120 V
Vce Saturation (Max) @ Ib, Ic:	700mV @ 200mA, 1A
Current - Collector Cutoff (Max):	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	160 @ 300mA, 5V
Power - Max:	1.2 W
Frequency - Transition:	175MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole

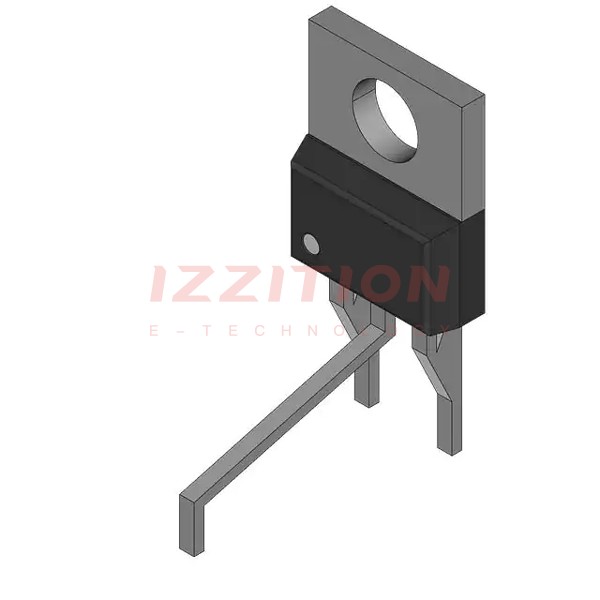

Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126

Fairchild Semiconductor KSA1220YSTU
