Fairchild Semiconductor-KBL08 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	KBL08	KBL608	KBL01	KBL02	KBL04	KBL06
Manufacturer	Fairchild Semiconductor	MDD	onsemi	onsemi	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	800 V	800 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	4 A	250 mA	4 A	4 A	4 A	4 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 4 A	1.1 V @ 6 A	1.1 V @ 4 A	1.1 V @ 4 A	1.1 V @ 4 A	1.1 V @ 4 A
Current - Reverse Leakage @ Vr	5 µA @ 800 V	10 µA @ 800 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, KBL	4-SIP, KBL	4-SIP, KBL	4-SIP, KBL	4-SIP, KBL	4-SIP, KBL
Supplier Device Package	KBL	KBL	KBL	KBL	KBL	KBL

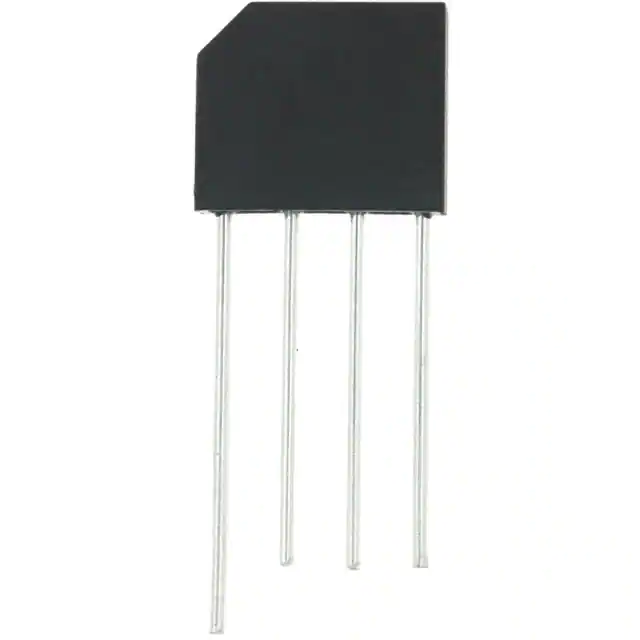

Fairchild Semiconductor KBL08

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	800 V
Current - Average Rectified (Io):	4 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 4 A
Current - Reverse Leakage @ Vr:	5 µA @ 800 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, KBL
Supplier Device Package:	KBL
