| Part Number | KA5Q1565RFYDTU | KA5Q1265RFYDTU |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | - | - |
| Voltage - Load | 40V | 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | - | - |
| Rds On (Typ) | 500mOhm | 750mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Auto Restart | Auto Restart |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole |

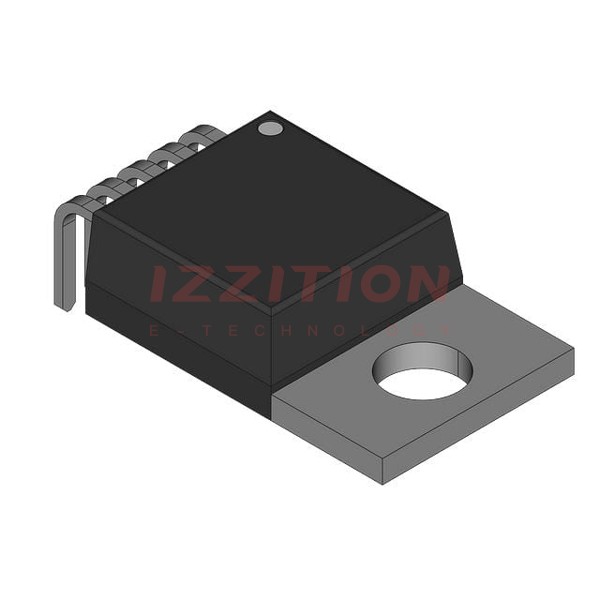

| Supplier Device Package | TO-220F-5L (Forming) | TO-220F-5L (Forming) |
| Package / Case | TO-220-5 Full Pack, Formed Leads | TO-220-5 Full Pack, Formed Leads |
