| Part Number | JM38510/11905BGA | JM38510/11905BPA | JM38510/11405BGA |
|---|---|---|---|
| Manufacturer | National Semiconductor | National Semiconductor | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Amplifier Type | J-FET | J-FET | J-FET |
| Number of Circuits | 2 | 4 | 1 |
| Output Type | - | - | - |
| Slew Rate | 13V/µs | 13V/µs | 10V/µs |
| Gain Bandwidth Product | 3 MHz | 3 MHz | - |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 50 pA | 65 pA | 100 pA |
| Voltage - Input Offset | 500 µV | 3 mV | 2 mV |
| Current - Supply | 3.6mA (x2 Channels) | 1.4mA (x4 Channels) | - |
| Current - Output / Channel | - | - | 50 mA |
| Voltage - Supply Span (Min) | 7 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 36 V | 30 V | 40 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C (TA) | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Through Hole | Through Hole |

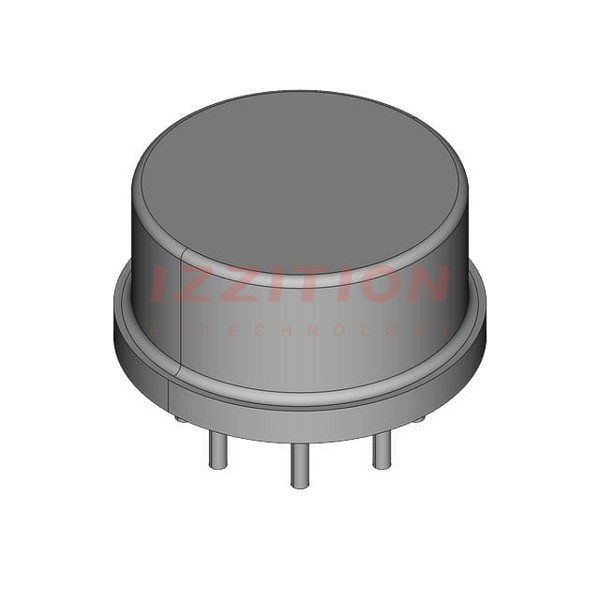

| Package / Case | 10-CFlatPack | 8-CDIP (0.300", 7.62mm) | TO-99-8 Metal Can |
| Supplier Device Package | 10-CFP | 8-CDIP | TO-99-8 |
