| Part Number | ISL97632IRT14Z-T | ISL97632IRT18Z-T | ISL97634IRT14Z-T | ISL97632IRT14Z-TK |
|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | SEPIC, Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 2.4V | 2.4V | 2.4V | 2.4V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | - | - | - | - |
| Current - Output / Channel | 70mA | 50mA | 70mA | 70mA |
| Frequency | 1.45MHz | 1.45MHz | 1.45MHz | 1.45MHz |
| Dimming | - | - | PWM | - |
| Applications | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

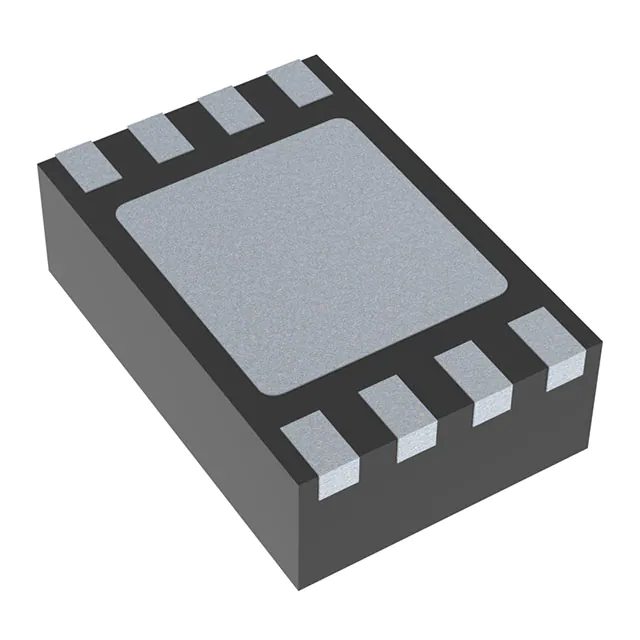

| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) | 8-TDFN (2x3) |
