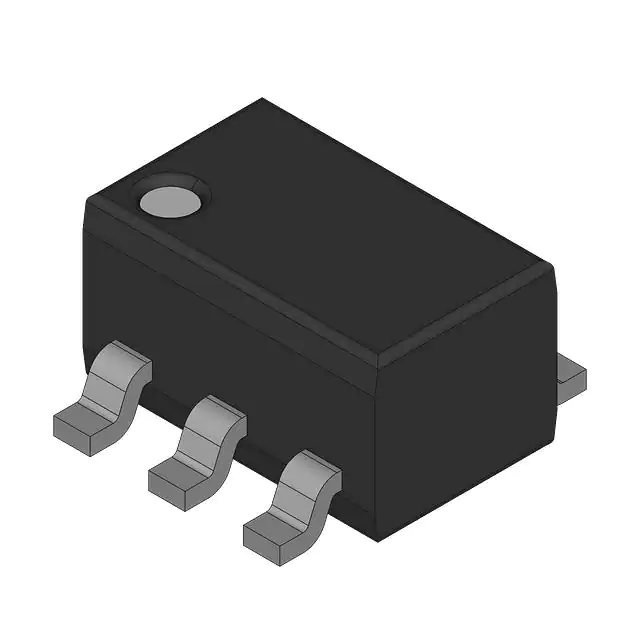

| Part Number | ISL9003IEFZ-T | ISL9003IEHZ-T | ISL9003IEKZ-T | ISL9003IEMZ-T | ISL9003IEJZ-T | ISL9003IENZ-T | ISL9008IEFZ-T | ISL9003AIEFZ-T | ISL9003IEBZ-T | ISL9003IECZ-T |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil | Intersil | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.75V | 2.85V | 3V | 2.8V | 3.3V | 2.5V | 2.5V | 1.5V | 1.8V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.4V @ 150mA | 0.4V @ 150mA | 0.325V @ 150mA | 0.325V @ 150mA | 0.4V @ 150mA | 0.325V @ 150mA | 0.4V @ 150mA | 0.4V @ 150mA | - | - |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 39 µA | 39 µA | 39 µA | 39 µA | 39 µA | 39 µA | 65 µA | 40 µA | 39 µA | 39 µA |
| Current - Supply (Max) | 56 µA | 56 µA | 56 µA | 56 µA | 56 µA | 56 µA | - | 57 µA | 56 µA | 56 µA |
| PSRR | - | - | - | - | - | - | - | - | - | 90db ~ 50dB (1kHz ~ 100kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 |
