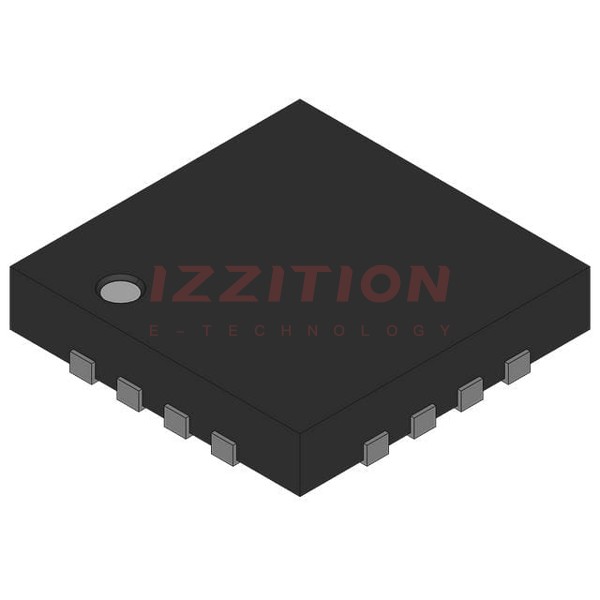

| Part Number | ISL84782IRZ | ISL84762IRZ | ISL84780IRZ | ISL84781IRZ | ISL84782IR |
|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil | Renesas Electronics America Inc | Intersil |
| Product Status | Active | Obsolete | Obsolete | Active | Obsolete |
| Switch Circuit | SP4T | SPDT | SPDT | - | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 | 2:1 | 2:1 | 8:1 | 4:1 |
| Number of Circuits | 2 | 2 | 4 | 1 | 2 |
| On-State Resistance (Max) | 750mOhm | 600mOhm | 600mOhm | 750mOhm | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm | 50mOhm | 130mOhm | 120mOhm | 120mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.6V ~ 3.6V | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 23ns | 20ns, 12ns | 20ns, 14ns | 25ns, 23ns | 25ns, 23ns |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | -65pC | 95pC | -97pC | -39pC | -65pC |
| Channel Capacitance (CS(off), CD(off)) | 62pF, 218pF | 115pF | 62pF | 65pF, 470pF | 62pF, 218pF |
| Current - Leakage (IS(off)) (Max) | 4nA | 2nA | 3nA | 4nA | 4nA |
| Crosstalk | -100dB @ 100kHz | -95dB @ 100kHz | -98dB @ 100kHz | - | -100dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad | 10-VFDFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) | 10-TDFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) |
