| Part Number | ISL84762IUZ | ISL84762IRZ | ISL84762IU |
|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 600mOhm | 600mOhm | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm | 50mOhm | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 20ns, 12ns | 20ns, 12ns | 20ns, 12ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 95pC | 95pC | 95pC |
| Channel Capacitance (CS(off), CD(off)) | 115pF | 115pF | 115pF |
| Current - Leakage (IS(off)) (Max) | 2nA | 2nA | 2nA |
| Crosstalk | -95dB @ 100kHz | -95dB @ 100kHz | -95dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

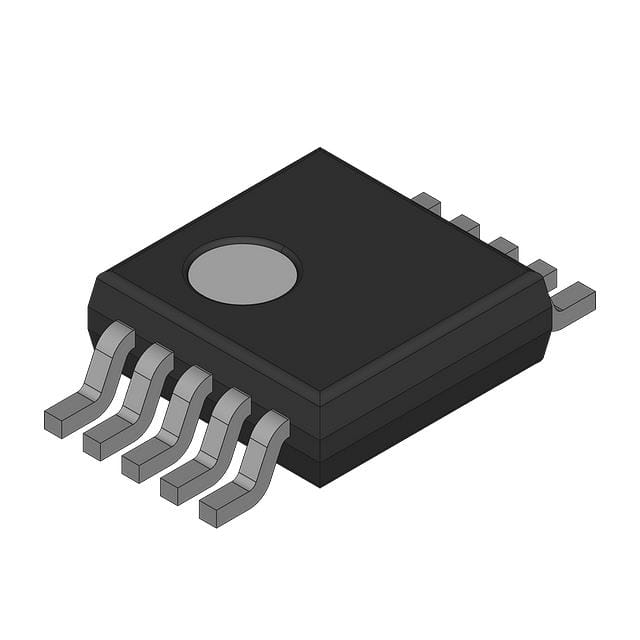

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-VFDFN Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP | 10-TDFN (3x3) | 10-MSOP |
