| Part Number | ISL84715IH-T | ISL84716IH-T | ISL84715IHZ-T | ISL84714IH-T |
|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Switch Circuit | SPST - NO | SPST - NC | SPST - NO | SPDT |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 2:1 |
| Number of Circuits | 1 | 1 | 1 | 1 |
| On-State Resistance (Max) | 400mOhm | 400mOhm | 400mOhm | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | 5mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 12ns, 8ns | 12ns, 8ns | 12ns, 8ns | 11ns, 7ns |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 70pC | 70pC | 70pC | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 68pF, 68pF | 68pF, 68pF | 68pF, 68pF | 40pF |
| Current - Leakage (IS(off)) (Max) | 3nA | 3nA | 3nA | 2nA |
| Crosstalk | - | - | - | -50dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

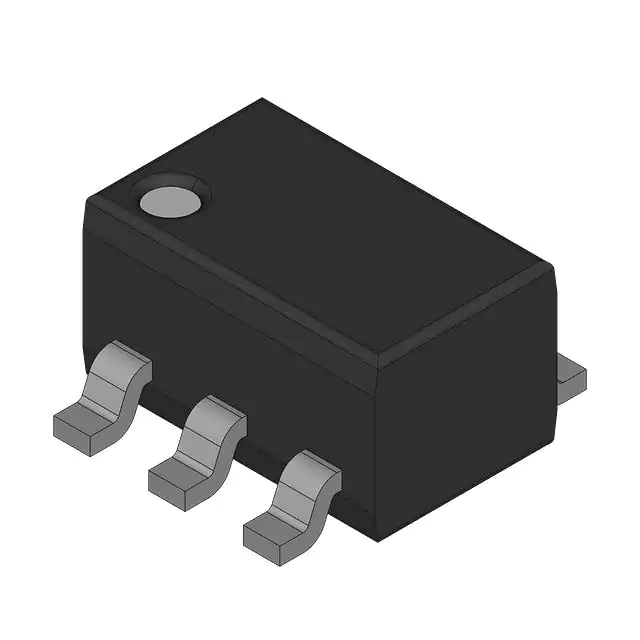

| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-6 |
