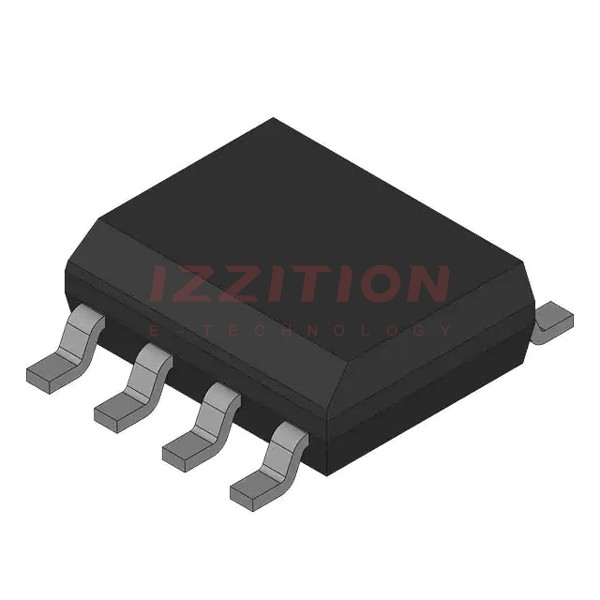

| Part Number | ISL84543IBZ | ISL84544IBZ | ISL84543IPZ | ISL84523IBZ | ISL84541IBZ | ISL84542IBZ | ISL84543CBZ | ISL84543IB |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPST - NO/NC | SPDT | SPST - NO/NC | SPST - NO/NC | SPST - NO | SPST - NC | SPST - NO/NC | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 2:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 2 | 1 | 2 | 4 | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 60Ohm | 60Ohm | 60Ohm | 100Ohm | 60Ohm | 60Ohm | 60Ohm | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm | 800mOhm | 800mOhm | 1Ohm | 800mOhm | 800mOhm | 800mOhm | 800mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V | 2V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - | - | - | ±2V ~ 6V | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 100ns, 75ns | 100ns, 75ns | 100ns, 75ns | 80ns, 30ns | 100ns, 75ns | 100ns, 75ns | 100ns, 75ns | 100ns, 75ns |
| -3db Bandwidth | - | - | - | - | - | - | - | - |
| Charge Injection | 1pC | 1pC | 1pC | 1pC | 1pC | 1pC | 1pC | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF | 8pF, 8pF | 8pF, 8pF | 2pF, 2pF | 8pF, 8pF | 8pF, 8pF | 8pF, 8pF | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA | 1nA | 100pA | 100pA | 100pA | 100pA |
| Crosstalk | -90dB @ 1MHz | -90dB @ 1MHz | -90dB @ 1MHz | -90dB @ 100kHz | -90dB @ 1MHz | -90dB @ 1MHz | -90dB @ 1MHz | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-PDIP | 16-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
