| Part Number | ISL84525IUZ | ISL84524IUZ | ISL84525IU |
|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil |
| Product Status | Active | Active | Obsolete |
| Switch Circuit | DPDT | SP4T | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 4:1 | 2:2 |
| Number of Circuits | 2 | 1 | 2 |
| On-State Resistance (Max) | 150Ohm | 150Ohm | 150Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm | 2Ohm | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V | 2V ~ 12V | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns | 150ns, 120ns | 150ns, 120ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 0.8pC | 0.8pC | 0.8pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 14pF | 4pF, 14pF | 4pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

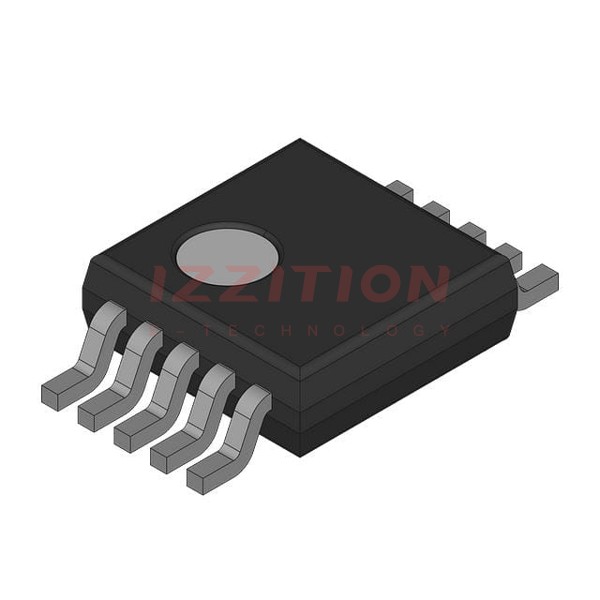

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP | 10-MSOP | 10-MSOP |
