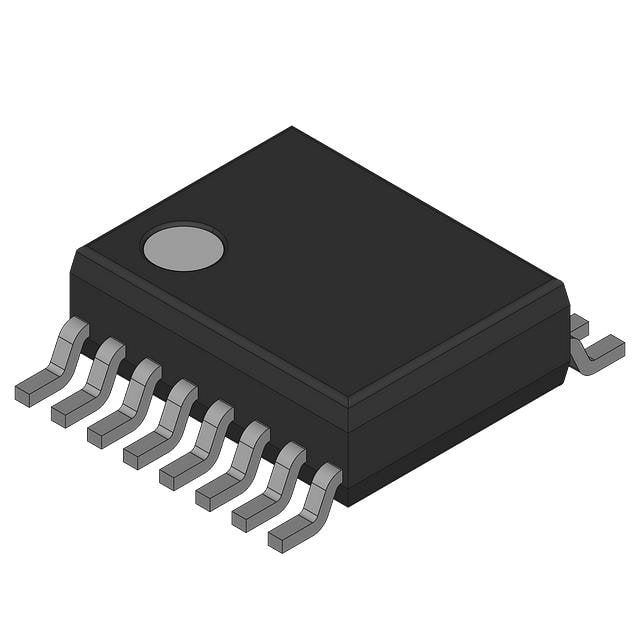

| Part Number | ISL84053IA | ISL84053IAZ | ISL84053IB | ISL84051IA | ISL84052IA |
|---|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPDT | SPDT | SPDT | - | SP4T |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 8:1 | 4:1 |
| Number of Circuits | 3 | 3 | 3 | 1 | 2 |
| On-State Resistance (Max) | 100Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm (Max) | 6Ohm (Max) | 6Ohm (Max) | 6Ohm (Max) | 6Ohm (Max) |
| Voltage - Supply, Single (V+) | 2V ~ 12V | 2V ~ 12V | 2V ~ 12V | 2V ~ 12V | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V | ±2V ~ 6V | ±2V ~ 6V | ±2V ~ 6V | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 50ns, 40ns | 50ns, 40ns | 50ns, 40ns | 50ns, 40ns | 50ns, 40ns |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | 2pC | 2pC | 2pC | 2pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 9pF | 3pF, 9pF | 3pF, 9pF | 3pF, 21pF | 3pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 2pA (Typ) | 2pA (Typ) | 2pA (Typ) | 2pA (Typ) | 2pA (Typ) |
| Crosstalk | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP | 16-QSOP | 16-SOIC | 16-QSOP | 16-QSOP |
