Please send RFQ , we will respond immediately.

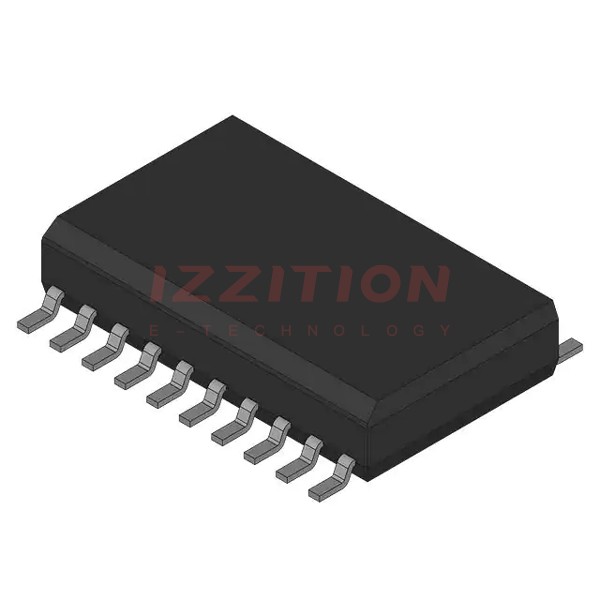

| Part Number | ISL8394IBZ | ISL8324IBZ | ISL8391IBZ | ISL8392IBZ | ISL8393IBZ | ISL8394IB |
|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPDT | SPST - NC | SPST - NC | SPST - NO | SPST - NO/NC | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 1:1 | 1:1 | 1:1 | 1:1 | 2:1 |
| Number of Circuits | 4 | 2 | 4 | 4 | 4 | 4 |
| On-State Resistance (Max) | 35Ohm | 60Ohm | 35Ohm | 35Ohm | 35Ohm | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm | 800mOhm | 300mOhm | 300mOhm | 300mOhm | 500mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 12V | 2.7V ~ 12V | 2V ~ 12V | 2V ~ 12V | 2V ~ 12V | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V | - | ±2V ~ 6V | ±2V ~ 6V | ±2V ~ 6V | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 130ns, 75ns | 150ns, 100ns | 130ns, 75ns | 130ns, 75ns | 130ns, 75ns | 130ns, 75ns |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | 5pC | 5pC (Max) | 5pC (Max) | 5pC (Max) | 5pC (Max) | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF | 9pF, 9pF | - | - | - | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 200pA | 100pA | 100pA | 100pA | 100pA | 200pA |
| Crosstalk | -92dB @ 1MHz | -85dB @ 1MHz | -89dB @ 1MHz | -89dB @ 1MHz | -89dB @ 1MHz | -92dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) | 8-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC | 8-SOIC | 16-SOIC | 16-SOIC | 16-SOIC | 20-SOIC |
