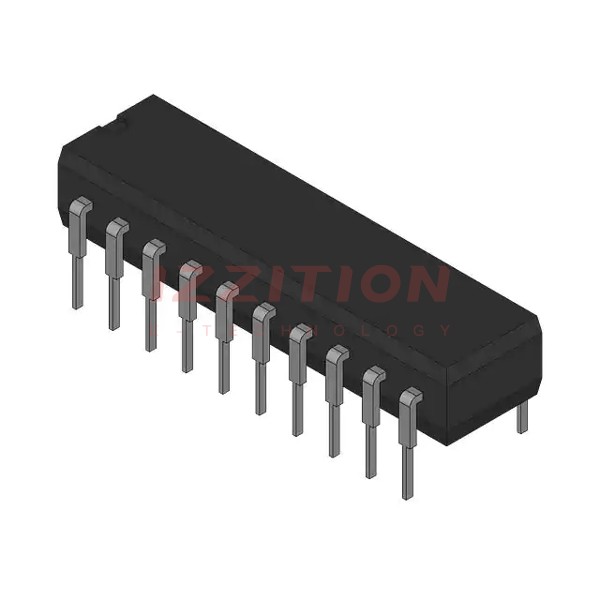

| Part Number | ISL83204AIPZ | ISL83204AIBZ |
|---|---|---|
| Manufacturer | Intersil | Intersil |
| Product Status | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous |
| Number of Drivers | 4 | 4 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 9.5V ~ 15V | 9.5V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2.5V | 1V, 2.5V |
| Current - Peak Output (Source, Sink) | 2.6A, 2.4A | 2.6A, 2.4A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 75 V | 75 V |
| Rise / Fall Time (Typ) | 10ns, 10ns | 10ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Surface Mount |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-PDIP | 20-SOIC |
