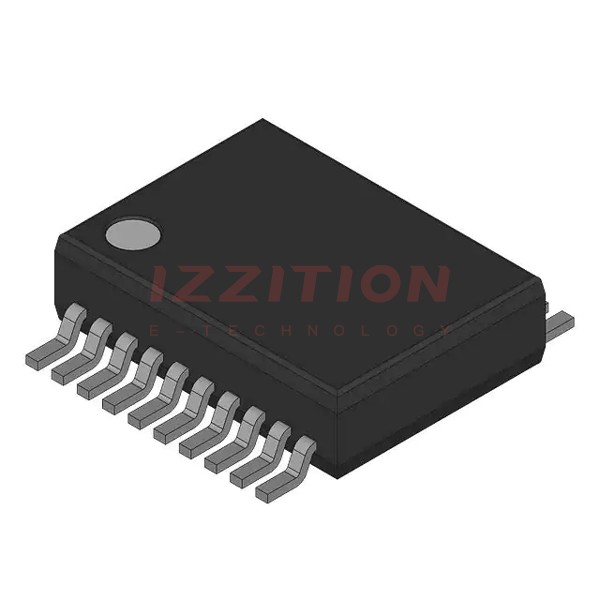

| Part Number | ISL6755AAZA | ISL6752AAZA | ISL6753AAZA | ISL6754AAZA |
|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Active | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Full-Bridge | Full-Bridge | Full-Bridge | Full-Bridge |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V | 9V ~ 16V | 9V ~ 16V | 9V ~ 16V |
| Frequency - Switching | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz |
| Duty Cycle (Max) | 99% | 99% | 99% | 99% |
| Synchronous Rectifier | No | Yes | No | Yes |
| Clock Sync | No | No | No | No |
| Serial Interfaces | - | - | - | - |
| Control Features | Frequency Control, Ramp, Soft Start | Frequency Control | Frequency Control, Ramp, Soft Start | Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP | 16-QSOP | 16-QSOP | 20-QSOP |
