Please send RFQ , we will respond immediately.

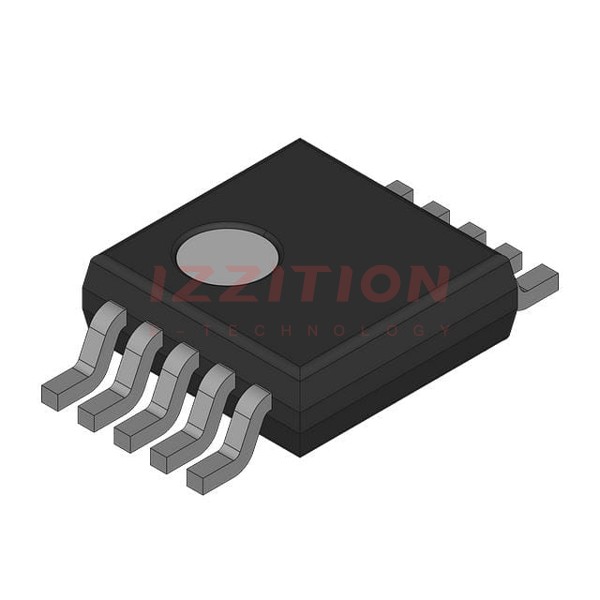

| Part Number | ISL6745AUZ | ISL6744AUZ | ISL6745AAUZ | ISL6745AU |
|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Full-Bridge, Half-Bridge | Full-Bridge, Half-Bridge | Full-Bridge, Half-Bridge | Full-Bridge, Half-Bridge |
| Number of Outputs | 2 | 1 | 2 | 2 |
| Output Phases | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V | 9V ~ 16V | 9V ~ 16V | 9V ~ 16V |
| Frequency - Switching | Up to 1MHz | Up to 1MHz | Up to 1MHz | Up to 1MHz |
| Duty Cycle (Max) | 99% | 99% | 99% | 99% |
| Synchronous Rectifier | No | Yes | No | No |
| Clock Sync | No | No | No | No |
| Serial Interfaces | - | - | - | - |
| Control Features | Frequency Control, Soft Start | Frequency Control, Soft Start | Frequency Control, Soft Start | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP | 8-MSOP | 10-MSOP | 10-MSOP |
