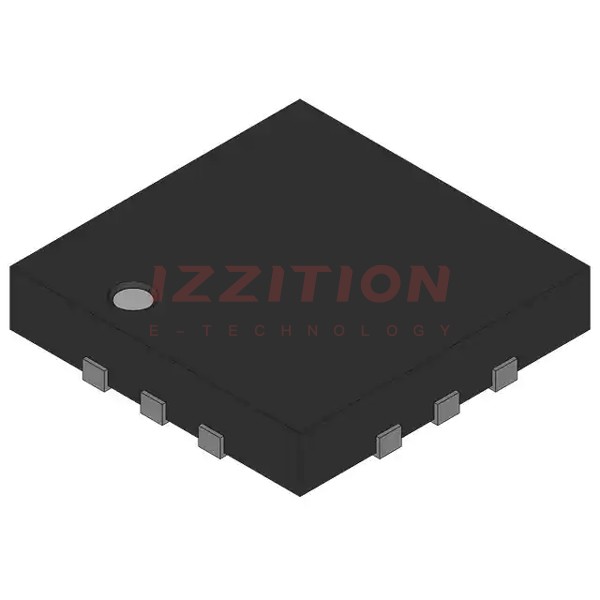

| Part Number | ISL6700IR | ISL6700IRZ | ISL6700IB |
|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 15V | 9V ~ 15V | 9V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.4A, 1.3A | 1.4A, 1.3A | 1.4A, 1.3A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 80 V | 80 V | 80 V |
| Rise / Fall Time (Typ) | 5ns, 5ns | 5ns, 5ns | 5ns, 5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-VQFN Exposed Pad | 12-VQFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 12-QFN (4x4) | 12-QFN (4x4) | 8-SOIC |
